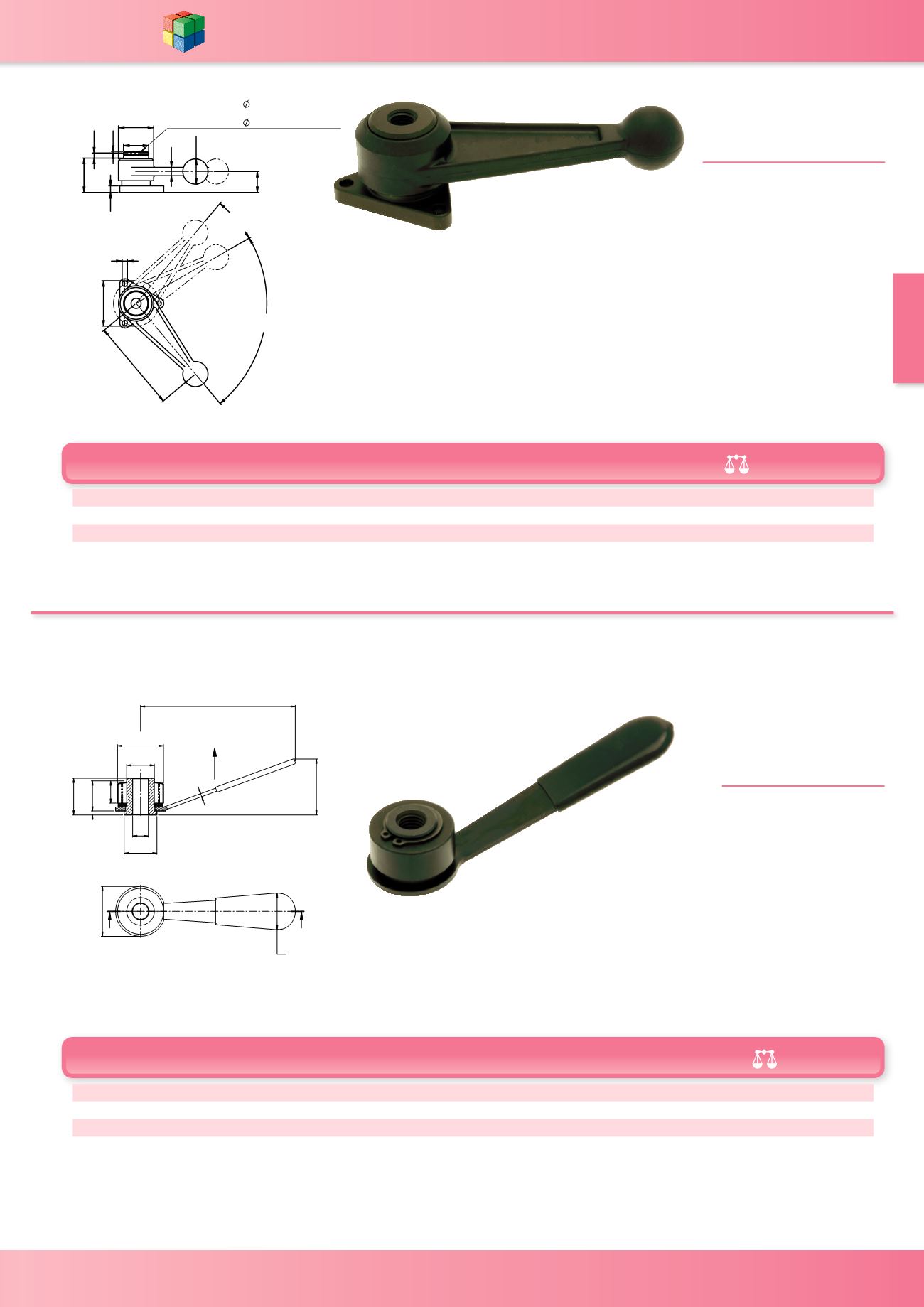

Cam Ram Clamp
WDS 4100
MATERIAL
-
Steel parts with black finish
All wearing parts hardened
Available in Clockwise (C) and
Anti-clockwise (A) models
Hand push = 36 kgf
P = Max holding force kg hand
P1 = Max holding force kg mallet
D D1 D2 D3 D4 H H1 H2 H3 H4 L
T
P P1
(kg) WDS No.
42 30 30 54 6.3 41 22 8
6
2 110 10 750 4000 0.6 4100-201C
42 30 30 54 6.3 41 22 8
6
2 110 10 750 4000 0.6 4100-201A
56 42 40 72 8.3 57 28 10 8 2.5 140 14 850 5000 1.3 4100-203C
56 42 40 72 8.3 57 28 10 8 2.5 140 14 850 5000 1.3 4100-203A
%
'
/
'
'
'
'
+
+
+
+ +
/LIW WR LQGH[
,1'(; 326,7,216
Clamping Lever -
Indexing
WDS 525
MATERIAL
-
Nut - Steel BS.970 Gr.212A42.
Handle, Washer and Cover -
Steel BS.970 Gr.220M07.
Handle and Nut surface
hardened.
Chemical black finish.
Plastic grip.
D
D1
D2
D3
D4
B
H
H1
H2
H3
H4
L
(g) WDS No.
M8 38
35
25
21
25
42
28
22
16
3
115 195 525-202
M10 38
35
25
21
25
42
28
22
16
3
115 185 525-203
M12 38
35
25
21
25
42
28
22
16
3
115 180 525-204
