SECTION 3 - HAND LEVERS
WDS
WDS
www.wdsltd.co.uk3-17
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*

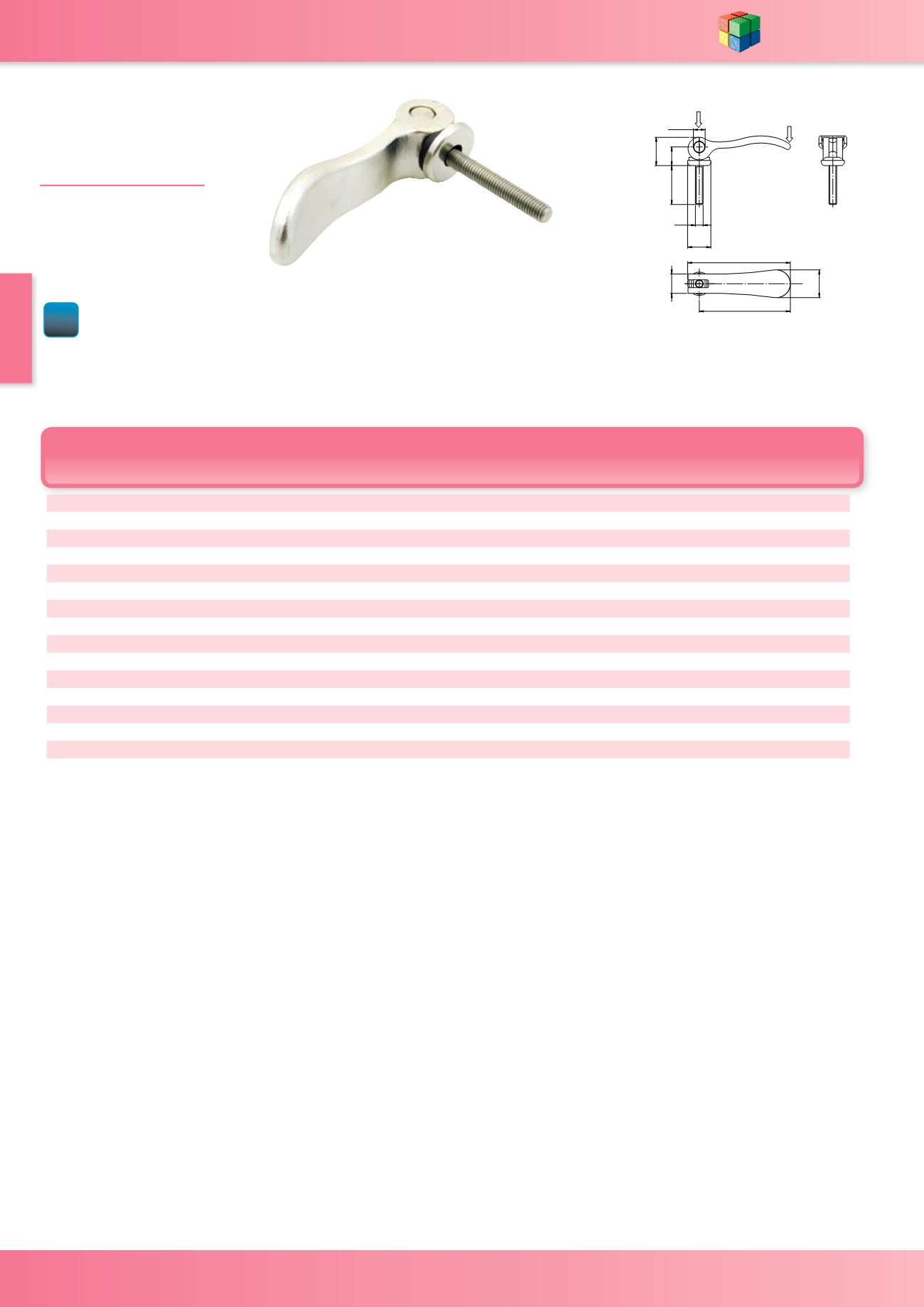

sales@wdsltd.co.ukCam Lever
Stainless Steel
WDS 364
MATERIAL
-
Handle - 304 Stainless Steel
Polished
Thrust washer - GRP PA6 GF30
Black
Pin, stud and washer - 303
Stainless Steel
D D1 D2 A A1 B B1 H H1
L
Stroke
Hand
Force (N)
Clamping
Force (kN)
WDS No.
M5 18 9 71 80 22 15 14.5 22 20
1.2
120
4
364-20520
M5 18 9 71 80 22 15 14.5 22 30
1.2
120
4
364-20530
M5 18 9 71 80 22 15 14.5 22 40
1.2
120
4
364-20540
M5 18 9 71 80 22 15 14.5 22 50
1.2
120
4
364-20550
M6 18 9 71 80 22 15 14.5 22 20
1.2
120
4
364-20620
M6 18 9 71 80 22 15 14.5 22 30
1.2
120
4
364-20630
M6 18 9 71 80 22 15 14.5 22 40
1.2
120
4
364-20640
M6 18 9 71 80 22 15 14.5 22 50
1.2
120
4
364-20650
M8 27 11 100 110 33 24 18 28.5 25
1.5
350
8
364-20825
M8 27 11 100 110 33 24 18 28.5 30
1.5
350
8
364-20830
M8 27 11 100 110 33 24 18 28.5 40
1.5
350
8
364-20840
M8 27 11 100 110 33 24 18 28.5 50
1.5
350
8
364-20850
M10 27 11 100 110 33 24 18 28.5 25
1.5
350
8
364-21025
M10 27 11 100 110 33 24 18 28.5 30
1.5
350
8
364-21030
M10 27 11 100 110 33 24 18 28.5 40
1.5
350
8
364-21040
M10 27 11 100 110 33 24 18 28.5 50
1.5
350
8
364-21050
'
'
+
'
/
+
+DQG
)RUFH
&ODPS
)RUFH
$
%
%
$
304
