SECTION 3 - HAND LEVERS
WDS
WDS
www.wdsltd.co.uk3-19
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*

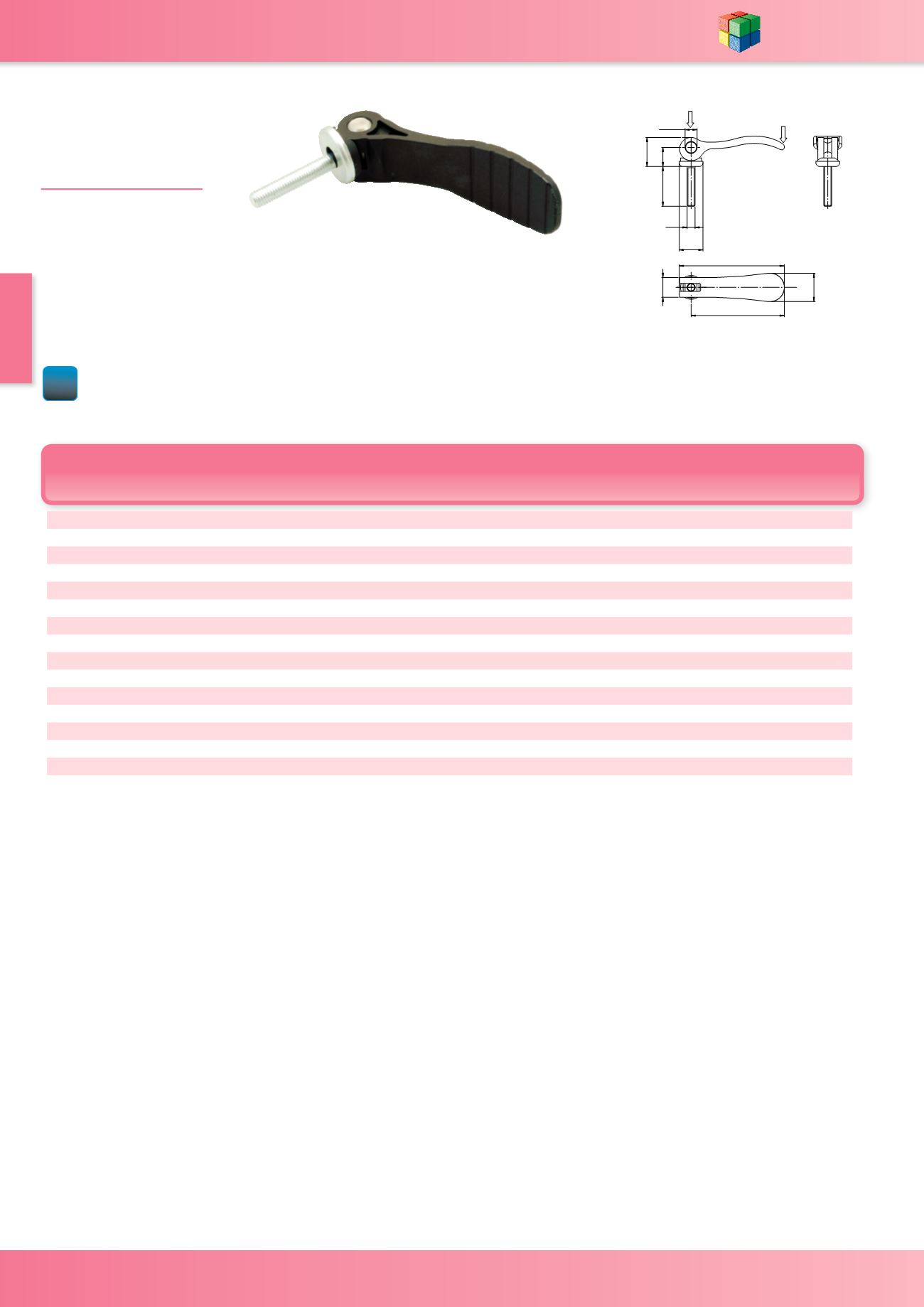

sales@wdsltd.co.ukCam Lever
Plastic Handle
WDS 365
MATERIAL
-
Handle - GRP PA66 Black
Thrust washer - GRP PA6 GF30
Black
Steel Version:
Pin - 303 Stainless Steel
Stud & Washer - in Grade 5.8
steel
Stainless Version:
Pin, stud and washer - 303
Stainless Steel
D D1 D2 A A1 B B1 H H1 L Stroke Hand
Force (N)
Clamping
Force (kN)
Steel Stud
WDS No.
Stainless
Stud
WDS No.
M5 18 9 71 80 22 16 13.8 23.1 20 1.15 125
2.5 365-20520 365-60520
M5 18 9 71 80 22 16 13.8 23.1 30 1.15 125
2.5 365-20530 365-60530
M5 18 9 71 80 22 16 13.8 23.1 40 1.15 125
2.5 365-20540 365-60540
M5 18 9 71 80 22 16 13.8 23.1 50 1.15 125
2.5 365-20550 365-60550
M6 18 9 71 80 22 16 13.8 23.1 20 1.15 125
2.5 365-20620 365-60620
M6 18 9 71 80 22 16 13.8 23.1 30 1.15 125
2.5 365-20630 365-60630
M6 18 9 71 80 22 16 13.8 23.1 40 1.15 125
2.5 365-20640 365-60640
M6 18 9 71 80 22 16 13.8 23.1 50 1.15 125
2.5 365-20650 365-60650
M8 27 11 100 110 33 24 16.2 27.7 25 1.5
170
5
365-20825 365-60825
M8 27 11 100 110 33 24 16.2 27.7 30 1.5
170
5
365-20830 365-60830
M8 27 11 100 110 33 24 16.2 27.7 40 1.5
170
5
365-20840 365-60840
M8 27 11 100 110 33 24 16.2 27.7 50 1.5
170
5
365-20850 365-60850
M10 27 11 100 110 33 24 16.2 27.7 25 1.5
170
5
365-21025 365-61025
M10 27 11 100 110 33 24 16.2 27.7 30 1.5
170
5
365-21030 365-61030
M10 27 11 100 110 33 24 16.2 27.7 40 1.5
170
5
365-21040 365-61040
M10 27 11 100 110 33 24 16.2 27.7 50 1.5
170
5
365-21050 365-61050
'
'
+
'
/
+
