Aluminium/
Stainless Steel

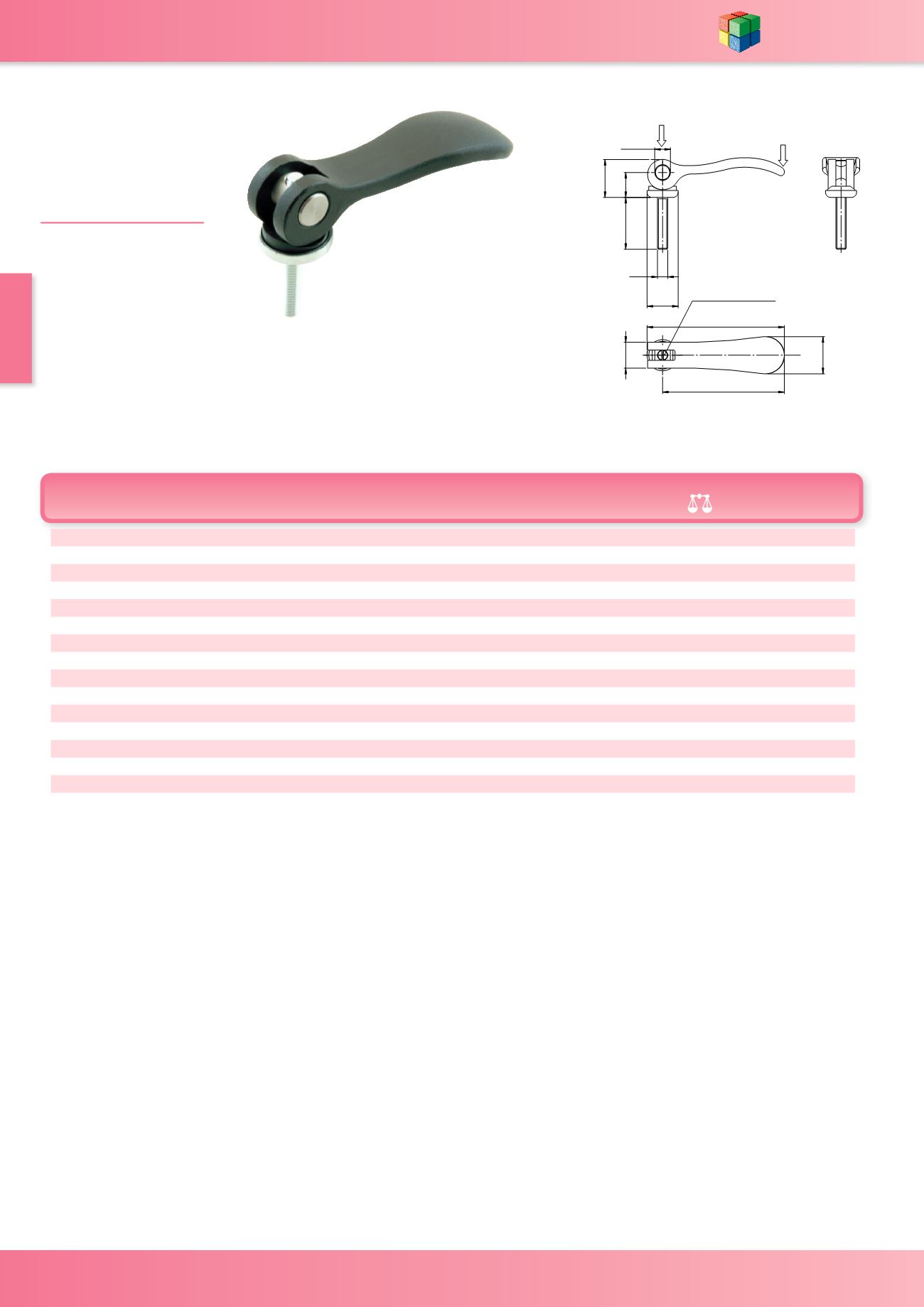

Cam Lever
WDS 370
MATERIAL
-
Handle Aluminium EN AC-46200
Powder coated - Black
Thrust washer GRP PA6 GF35
Black
Hinge Pin, Stud & Washer 1.4305
D D1 D2 A A1 B B1 H H1 L Stroke
Hand Force
(N)
Clamping
Force (kN)
(g)
WDS No.
M5 18 9 71 80 22 15 14.5 22 20 1.2 120
4
40
370-60520
M5 18 9 71 80 22 15 14.5 22 30 1.2 120
4
39
370-60530
M5 18 9 71 80 22 15 14.5 22 40 1.2 120
4
40
370-60540
M5 18 9 71 80 22 15 14.5 22 50 1.2 120
4
40
370-60550
M6 18 9 71 80 22 15 14.5 22 20 1.2 120
4
41
370-60620
M6 18 9 71 80 22 15 14.5 22 30 1.2 120
4
42
370-60630
M6 18 9 71 80 22 15 14.5 22 40 1.2 120
4
44
370-60640
M6 18 9 71 80 22 15 14.5 22 50 1.2 120
4
42
370-60650
M8 27 11 100 110 33 24 18 28.5 25 1.5 350
8
115
370-60825
M8 27 11 100 110 33 24 18 28.5 30 1.5 350
8
115
370-60830
M8 27 11 100 110 33 24 18 28.5 40 1.5 350
8
118
370-60840
M8 27 11 100 110 33 24 18 28.5 50 1.5 350
8
120
370-60850
M10 27 11 100 110 33 24 18 28.5 25 1.5 350
8
121
370-61025
M10 27 11 100 110 33 24 18 28.5 30 1.5 350
8
128
370-61030
M10 27 11 100 110 33 24 18 28.5 40 1.5 350
8
130
370-61040
M10 27 11 100 110 33 24 18 28.5 50 1.5 350
8
133
370-61050
D
D1
H
D2
L
H1
Hand
Force
Clamp
Force
A
B1
B
A1
Adjusting screw
