SECTION 3 - HAND LEVERS
WDS
WDS
www.wdsltd.co.uk3-11
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukAluminium/Steel

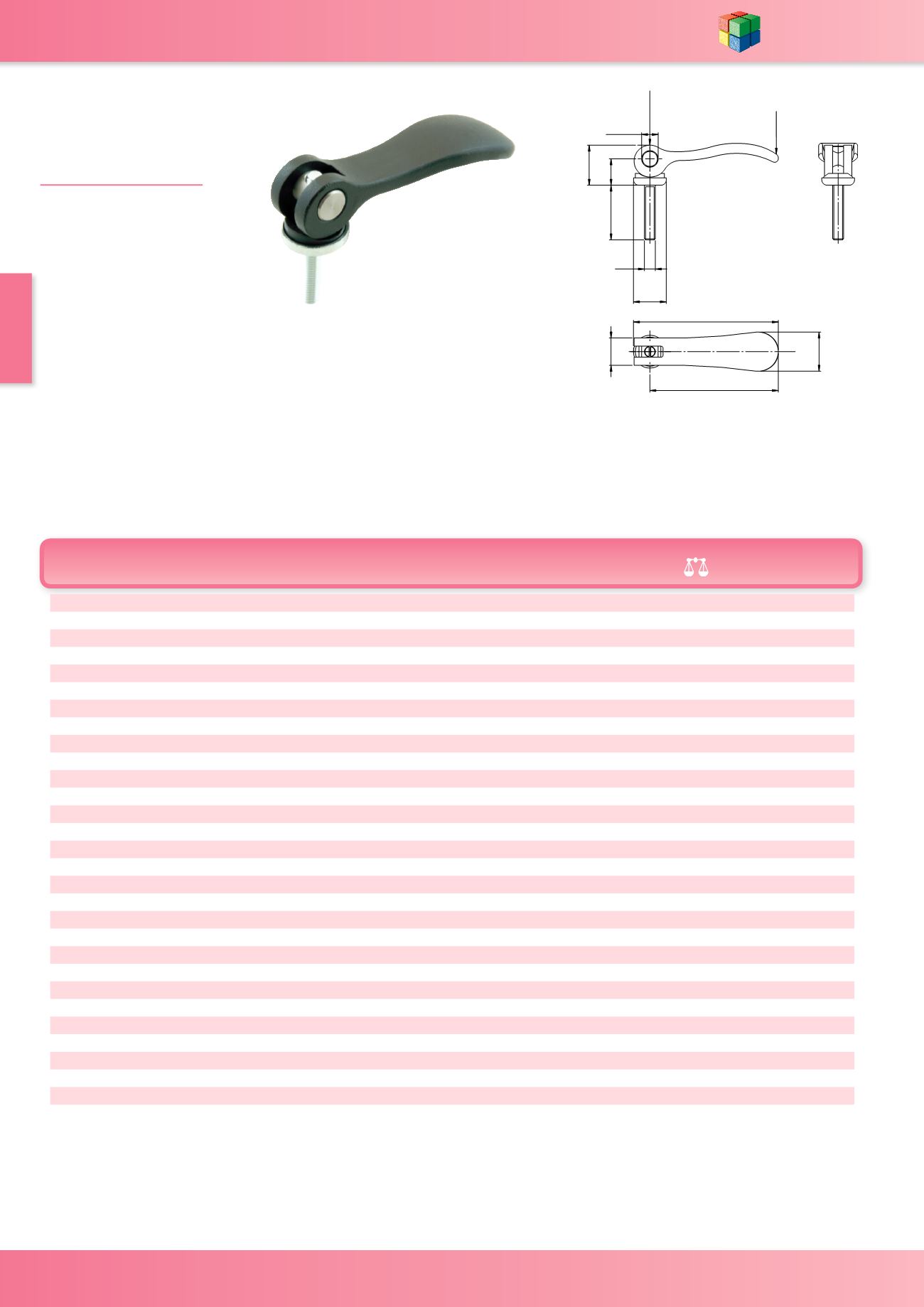

Cam Lever
WDS 368
MATERIAL
-
Handle - Cast Aluminium EN:
AC-46200 - Black powder
coated
Thrust washer - GRP PA66 GF35
Black
Stud and washer Class 5.8
Hinge Pin - Stainless Steel
1.4305
D D1 D2 A A1 B B1 H H1 L Stroke
Hand Force
(N)
Clamping
Force (kN)
(g)
WDS No.
M3 12 6 36 42 14 11.5 9 13 10 1
90
1.5
24
368-20310
M3 12 6 36 42 14 11.5 9 13 15 1
90
1.5
24.5
368-20315
M3 12 6 36 42 14 11.5 9 13 30 1
90
1.5
28
368-20330
M4 12 6 36 42 14 11.5 9 13 10 1
90
1.5
25
368-20410
M4 12 6 36 42 14 11.5 9 13 15 1
90
1.5
25.5
368-20415
M4 12 6 36 42 14 11.5 9 13 20 1
90
1.5
29
368-20430
M4 15.5 8 52 59 18 13 11 17 15 1
100
2.5
31.2
368-21415
M4 15.5 8 52 59 18 13 11 17 20 1
100
2.5
40.1
368-21420
M4 15.5 8 52 59 18 13 11 17 30 1
100
2.5
45
368-21430
M5 15.5 8 52 59 18 13 11 17 20 1.2 100
2.5
42.1
368-20520
M5 15.5 8 52 59 18 13 11 17 30 1.2 100
2.5
28.9
368-20530
M5 15.5 8 52 59 18 13 11 17 40 1.2 100
2.5
39.1
368-20540
M5 15.5 8 52 59 18 13 11 17 50 1.2 100
2.5
45
368-20550
M5 18 9 70 79 22 15 14.5 22 20 1.2 120
4
38.9
368-21520
M5 18 9 70 79 22 15 14.5 22 30 1.2 120
4
39.5
368-21530
M5 18 9 70 79 22 15 14.5 22 40 1.2 120
4
40.2
368-21540
M5 18 9 70 79 22 15 14.5 22 50 1.2 120
4
40.9
368-21550
M6 18 9 70 79 22 15 14.5 22 20 1.2 120
4
40.1
368-20620
M6 18 9 70 79 22 15 14.5 22 30 1.2 120
4
40.8
368-20630
M6 18 9 70 79 22 15 14.5 22 40 1.2 120
4
41.5
368-20640
M6 18 9 70 79 22 15 14.5 22 50 1.2 120
4
42.2
368-20650
M8 18 9 96 108 33 24 18 28.5 25 1.5 350
8
114.8 368-20825
M8 18 9 96 108 33 24 18 28.5 30 1.5 350
8
114
368-20830
M8 18 9 96 108 33 24 18 28.5 40 1.5 350
8
117.7 368-20840
M8 18 9 96 108 33 24 18 28.5 50 1.5 350
8
119.9 368-20850
M10 27 11 96 108 33 24 18 28.5 25 1.5 350
8
120.8 368-21025
M10 27 11 96 108 33 24 18 28.5 30 1.5 350
8
127.7 368-21030
M10 27 11 96 108 33 24 18 28.5 40 1.5 350
8
130.2 368-21040
M10 27 11 96 108 33 24 18 28.5 50 1.5 350
8
132.7 368-21050
'
'
+
'
/
+
