SECTION 3 - HAND LEVERS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk3-14
WDS

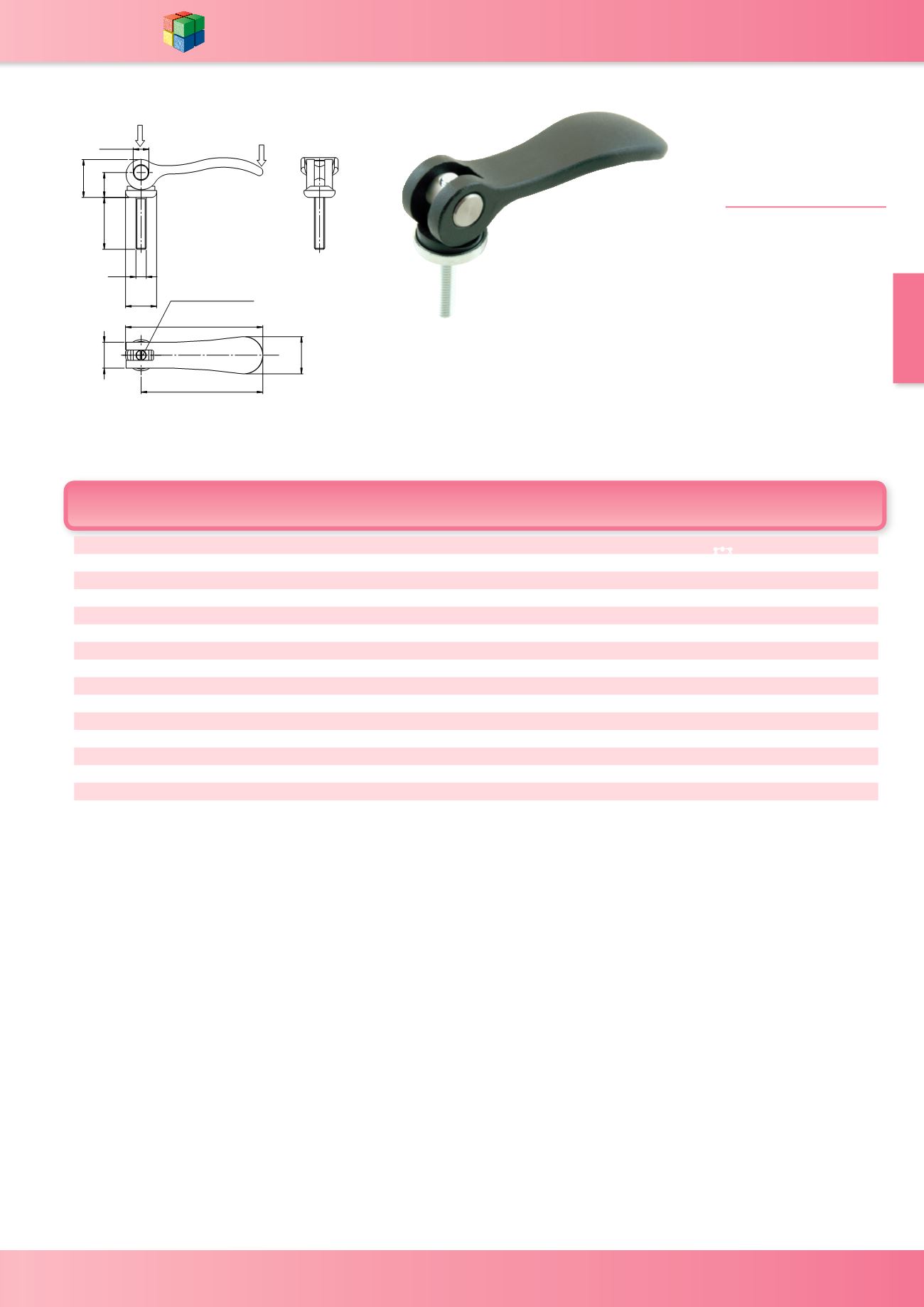

www.wdsltd.co.ukAdjustable
Aluminium/Steel
Cam Lever
WDS 370
MATERIAL
-
Handle Aluminium EN AC-46200
Powder coated - Black
Thrust washer GRP PA6 GF35
Black
Hinge Pin 1.4305
Stud and washer - Steel Grade
5.8
D D1 D2 A A1 B B1 H H1 L Stroke
Hand Force
(N)
Clamping
Force (kN)
(g)
WDS No.
M5 18 9 71 80 22 15 14.5 22 20 1.2 120
4
39
370-20520
M5 18 9 71 80 22 15 14.5 22 30 1.2 120
4
40
370-20530
M5 18 9 71 80 22 15 14.5 22 40 1.2 120
4
40
370-20540
M5 18 9 71 80 22 15 14.5 22 50 1.2 120
4
41
370-20550
M6 18 9 71 80 22 15 14.5 22 20 1.2 120
4
43
370-20620
M6 18 9 71 80 22 15 14.5 22 30 1.2 120
4
42
370-20630
M6 18 9 71 80 22 15 14.5 22 40 1.2 120
4
44
370-20640
M6 18 9 71 80 22 15 14.5 22 50 1.2 120
4
54
370-20650
M8 27 11 100 110 33 24 18 28.5 25 1.5 350
8
115
370-20825
M8 27 11 100 110 33 24 18 28.5 30 1.5 350
8
115
370-20830
M8 27 11 100 110 33 24 18 28.5 40 1.5 350
8
118
370-20840
M8 27 11 100 110 33 24 18 28.5 50 1.5 350
8
120
370-20850
M10 27 11 100 110 33 24 18 28.5 25 1.5 350
8
121
370-21025
M10 27 11 100 110 33 24 18 28.5 30 1.5 350
8
128
370-21030
M10 27 11 100 110 33 24 18 28.5 40 1.5 350
8
127
370-21040
M10 27 11 100 110 33 24 18 28.5 50 1.5 350
8
133
370-21050
D
D1
H
D2
L
H1
Hand
Force
Clamp
Force
A
B1
B
A1
Adjusting screw
