SECTION 3 - HAND LEVERS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk3-18
WDS

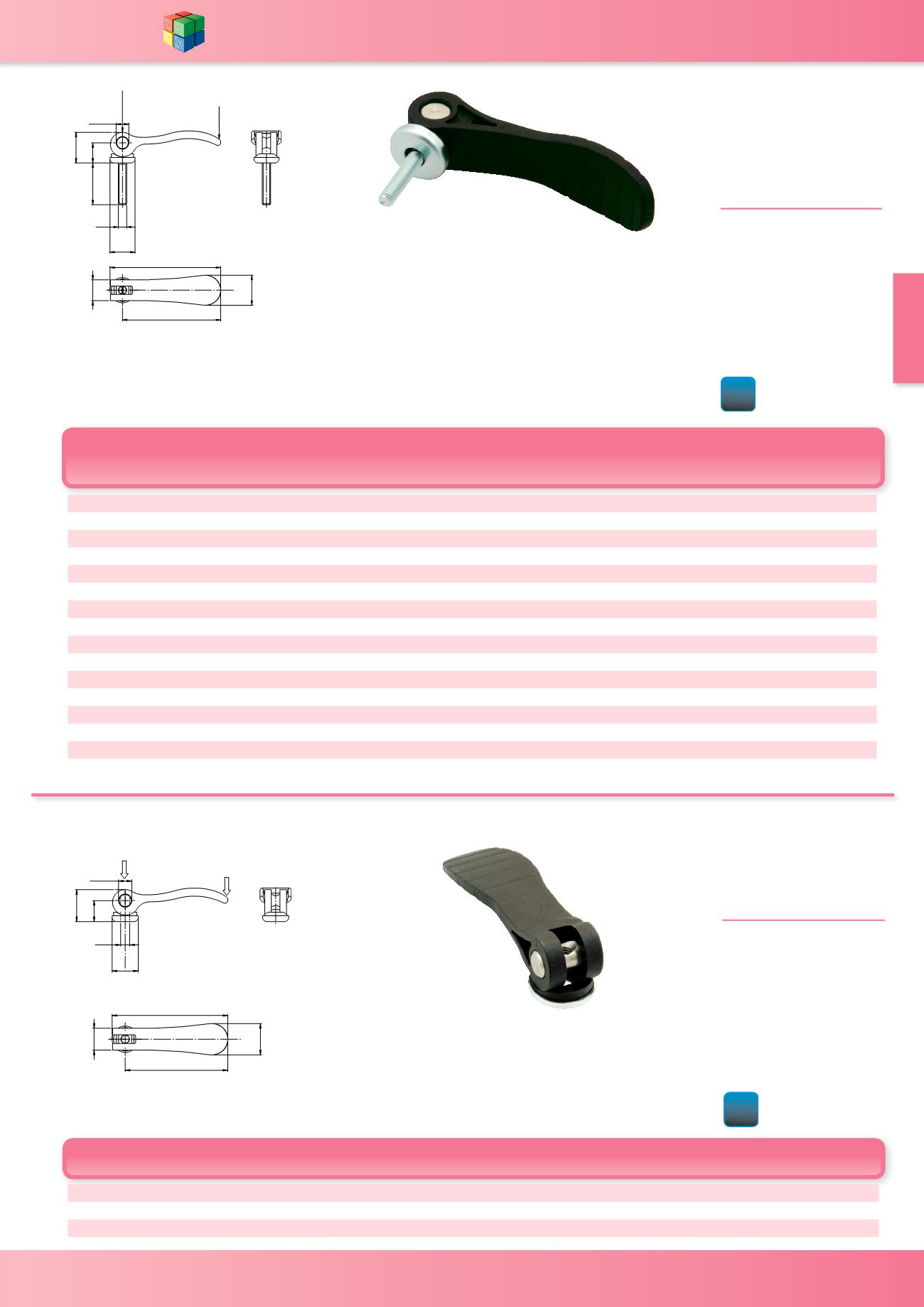

www.wdsltd.co.ukCam Lever
Adjustable
Plastic Handle
WDS 363
MATERIAL
-
Handle - GRP PA66 Black
Thrust washer - GRP PA6 GF30
Black
Steel Version:
Pin - 303 Stainless Steel
Stud & Washer - in Grade 5.8
Steel
Stainless Version:
Pin, stud and washer - 303
Stainless Steel
D D1 D2 A A1 B B1 H H1 L Stroke Hand
Force (N)
Clamping
Force (kN)
Steel Stud
WDS No.
Stainless
Stud
WDS No.
M5 18 9 71 80 22 16 13.8 23.1 20 1.15 125
2.5 363-20520 363-60520
M5 18 9 71 80 22 16 13.8 23.1 30 1.15 125
2.5 363-20530 363-60530
M5 18 9 71 80 22 16 13.8 23.1 40 1.15 125
2.5 363-20540 363-60540
M5 18 9 71 80 22 16 13.8 23.1 50 1.15 125
2.5 363-20550 363-60550
M6 18 9 71 80 22 16 13.8 23.1 20 1.15 125
2.5 363-20620 363-60620
M6 18 9 71 80 22 16 13.8 23.1 30 1.15 125
2.5 363-20630 363-60630
M6 18 9 71 80 22 16 13.8 23.1 40 1.15 125
2.5 363-20640 363-60640
M6 18 9 71 80 22 16 13.8 23.1 50 1.15 125
2.5 363-20650 363-60650
M8 27 11 100 110 33 24 16.2 27.7 25 1.5 170
5 363-20825 363-60825
M8 27 11 100 110 33 24 16.2 27.7 30 1.5 170
5 363-20830 363-60830
M8 27 11 100 110 33 24 16.2 27.7 40 1.5 170
5 363-20840 363-60840
M8 27 11 100 110 33 24 16.2 27.7 50 1.5 170
5 363-20850 363-60850
M10 27 11 100 110 33 24 16.2 27.7 25 1.5 170
5 363-21025 363-61025
M10 27 11 100 110 33 24 16.2 27.7 30 1.5 170
5 363-21030 363-61030
M10 27 11 100 110 33 24 16.2 27.7 40 1.5 170
5 363-21040 363-61040
M10 27 11 100 110 33 24 16.2 27.7 50 1.5 170
5 363-21050 363-61050
'
'
+
'
/
+
+DQG
)RUFH
&ODPS
)RUFH
$
%
%
$
Cam Lever
Plastic Handle
WDS 367
MATERIAL
-
Handle - GRP PA66 Black
Thrust washer - GRP PA6 GF30
Black
Steel Version:
Pin - 303 Stainless Steel
Washer - in Grade 5.8 steel
Stainless Version:
Pin - 303 Stainless Steel
Internal Thread and washer -
303 Stainless Steel
'
+
'
+
'
+DQG
)RUFH
&ODPS
)RUFH
$
%
%
$
D D1 D2 A A1 B B1 H H1 Stroke
Hand
Force (N)
Clamping
Force (kN)
Steel Washer
WDS No.
Stainless Washer
WDS No.
M5 18 9 71 79 22 16 14 23.4 1.15
125
2.5
367-205 367-605
M6 18 9 71 79 22 16 14 23.4 1.15
125
2.5
367-206 367-606
M8 27 11 96 108 33 24 16 27.7 1.5
170
5
367-208 367-608
