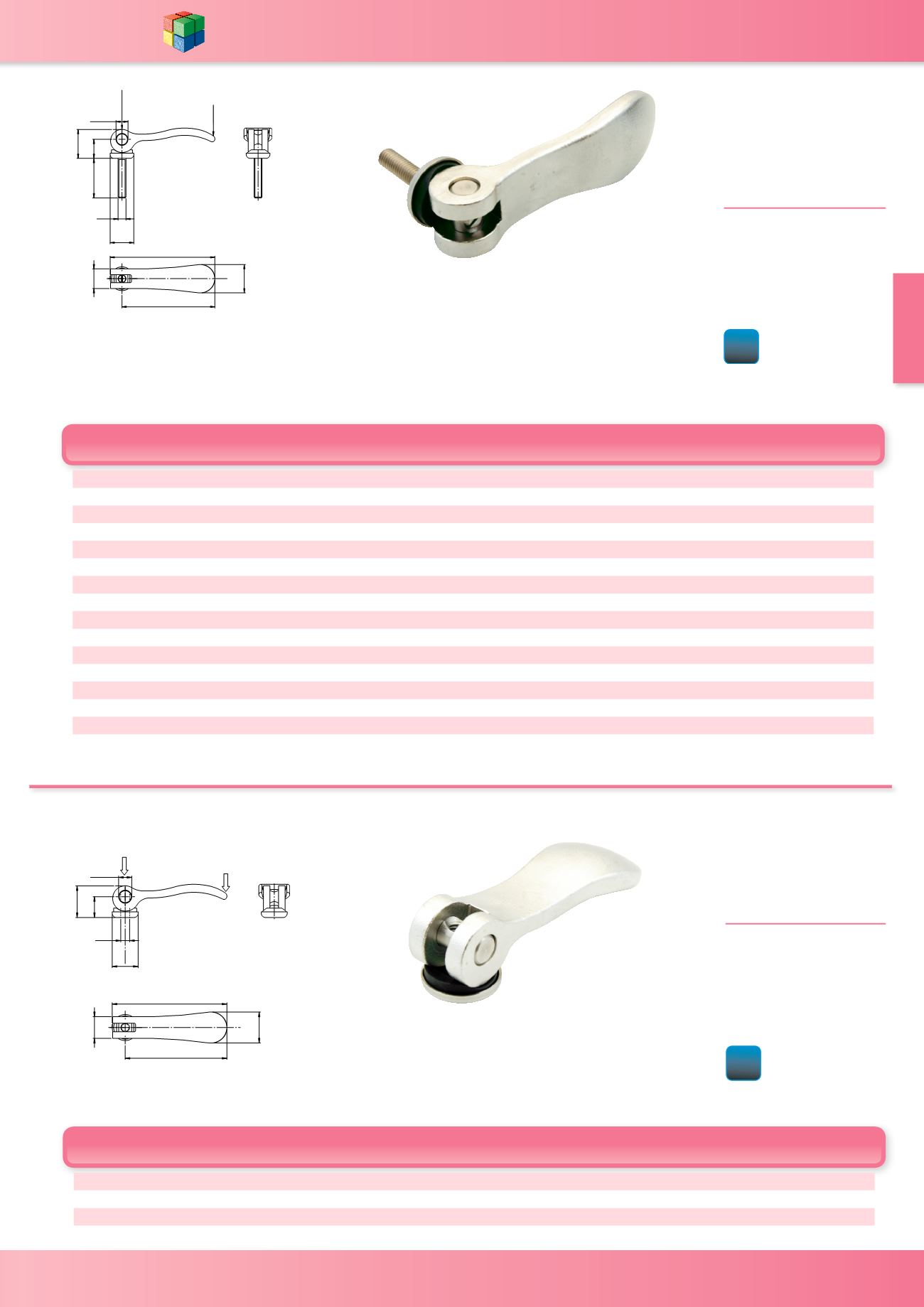

www.wdsltd.co.ukCam Lever -
Adjustable
Stainless Steel
WDS 362
MATERIAL
-
Handle - 304 Stainless Steel
Polished
Thrust washer - GRP PA6 GF30
Black
Pin, stud and washer - 303
Stainless
D D1 D2
A A1
B B1
H H1
L Stroke Hand
Force (N)
Clamping
Force (kN)
WDS No.
M5 18 9 71 80 22 15 14.5 22 20 1.2
125
4
362-20520
M5 18 9 71 80 22 15 14.5 22 30 1.2
125
4
362-20530
M5 18 9 71 80 22 15 14.5 22 40 1.2
125
4
362-20540
M5 18 9 71 80 22 15 14.5 22 50 1.2
125
4
362-20550
M6 18 9 71 80 22 15 14.5 22 20 1.2
125
4
362-20620
M6 18 9 71 80 22 15 14.5 22 30 1.2
125
4
362-20630
M6 18 9 71 80 22 15 14.5 22 40 1.2
125
4
362-20640
M6 18 9 71 80 22 15 14.5 22 50 1.2
125
4
362-20650
M8 27 11 100 110 33 24 18 28.5 25 1.5
350
8
362-20825
M8 27 11 100 110 33 24 18 28.5 30 1.5
350
8
362-20830
M8 27 11 100 110 33 24 18 28.5 40 1.5
350
8
362-20840
M8 27 11 100 110 33 24 18 28.5 50 1.5
350
8
362-20850
M10 27 11 100 110 33 24 18 28.5 25 1.5
350
8
362-21025
M10 27 11 100 110 33 24 18 28.5 30 1.5
350
8
362-21030
M10 27 11 100 110 33 24 18 28.5 40 1.5
350
8
362-21040
M10 27 11 100 110 33 24 18 28.5 50 1.5
350
8
362-21050
'
'
+
'
/
+
+DQG
)RUFH
&ODPS
)RUFH
$
%
%
$
304
Cam Lever
Stainless Steel
WDS 366
MATERIAL
-
Handle - 304 Stainless Steel
Polished
Thrust washer - GRP PA6 GF30
Black
Internal Thread & washer - 303
Stainless
'
+
'
+
'
+DQG
)RUFH
&ODPS
)RUFH
$
%
%
$
D D1 D2
A
A1
B B1
H H1 Stroke Hand
Force (N)
Clamping
Force (kN)
WDS No.
M5 18
9
71 79 22 16 14.5 22
1.2
120
4
366-205
M6 18
9
71 79 22 16 14.5 22
1.2
120
4
366-206
M8 27 11 96 108 33 24 18 28.5 1.5
350
8
366-208
304
