SECTION 5 - HAND KNOBS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk5-92
WDS

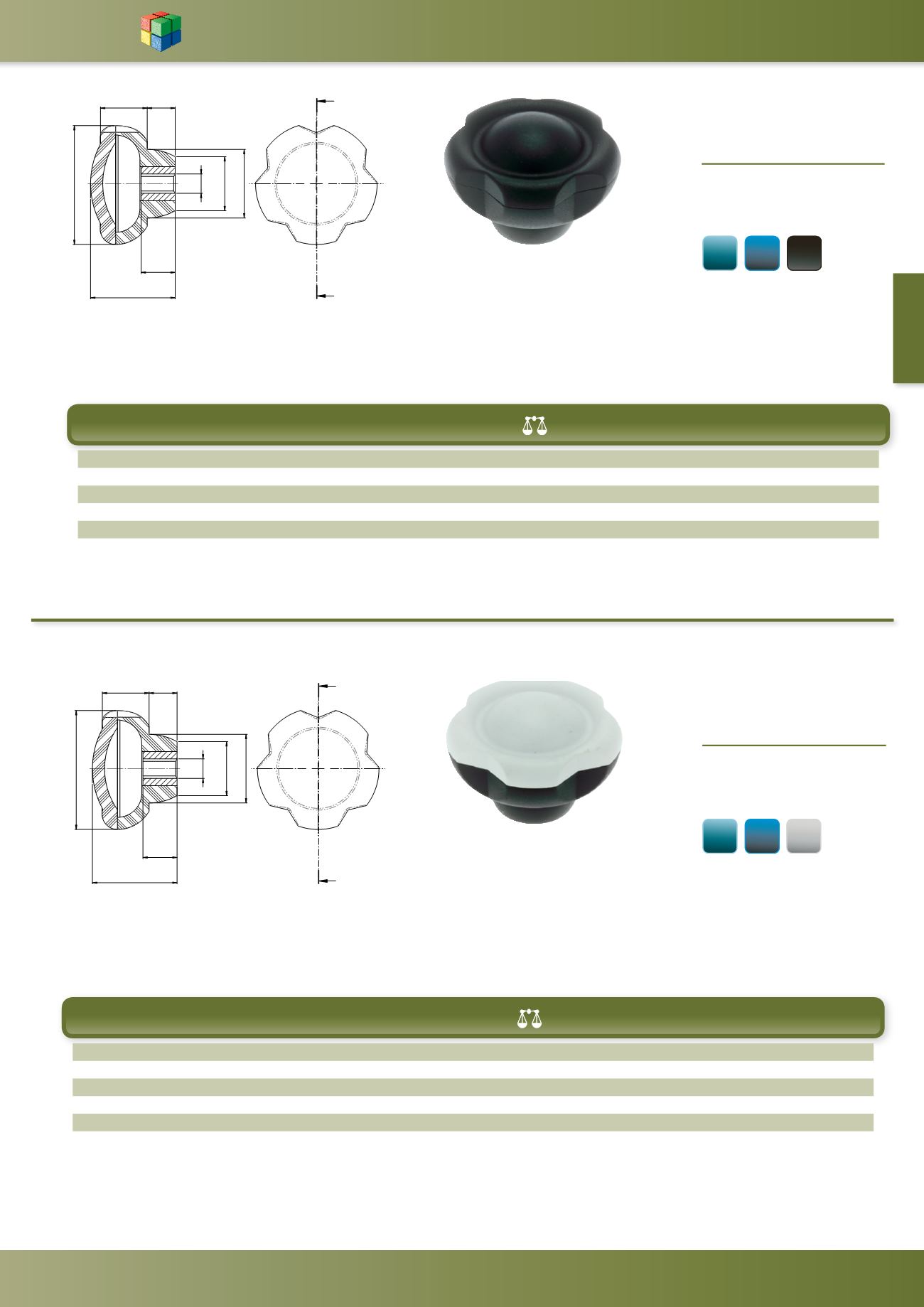

www.wdsltd.co.ukClamp Grip - Female
Clamp Grip - Female
WDS 8475
WDS 8475
MATERIAL
-
Body - Thermoplasticp
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
MATERIAL
-
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
Black Grey - RAL 7021
Pale Grey - RAL 7035
D D1 D2 D3
H H1 H2
T
(g)
WDS No.
Steel Insert
WDS No.
Stainless Steel Insert
M8 50 22.2 28.2 34.8 17.8 11.5 14
30
8475-202BG
8475-302BG
M10 50 22.2 28.2 34.8 17.8 11.5 14
20
8475-204BG
8475-304BG
M12 50 22.2 28.2 34.8 17.8 11.5 18
10
8475-206BG
8475-306BG
M10 63 28 35.5 44 22.5 14.5 14
70
8475-208BG
8475-308BG
M12 63 28 35.5 44 22.5 14.5 18
50
8475-210BG
8475-310BG
M16 63 28 35.5 44 22.5 14.5 18
40
8475-212BG
-
D D1 D2 D3
H H1 H2
T
(g)
WDS No.
Steel Insert
WDS No.
Stainless Steel Insert
M8 50 22.2 28.2 34.8 17.8 11.5 14
30
8475-202PG 8475-302PG
M10 50 22.2 28.2 34.8 17.8 11.5 14
20
8475-204PG 8475-304PG
M12 50 22.2 28.2 34.8 17.8 11.5 18
10
8475-206PG 8475-306PG
M10 63 28 35.5 44 22.5 14.5 14
70
8475-208PG 8475-308PG
M12 63 28 35.5 44 22.5 14.5 18
50
8475-210PG 8475-310PG
M16 63 28 35.5 44 22.5 14.5 18
40
8475-212PG
-
'
'
'
7
'
+ +
+
'
'
'
7
'
+ +
+
RAL
7035
ZP
303
RAL
7021
ZP
303
