SECTION 5 - HAND KNOBS WDS
WDS
5-97 & 0845 606 66 77 • : • *

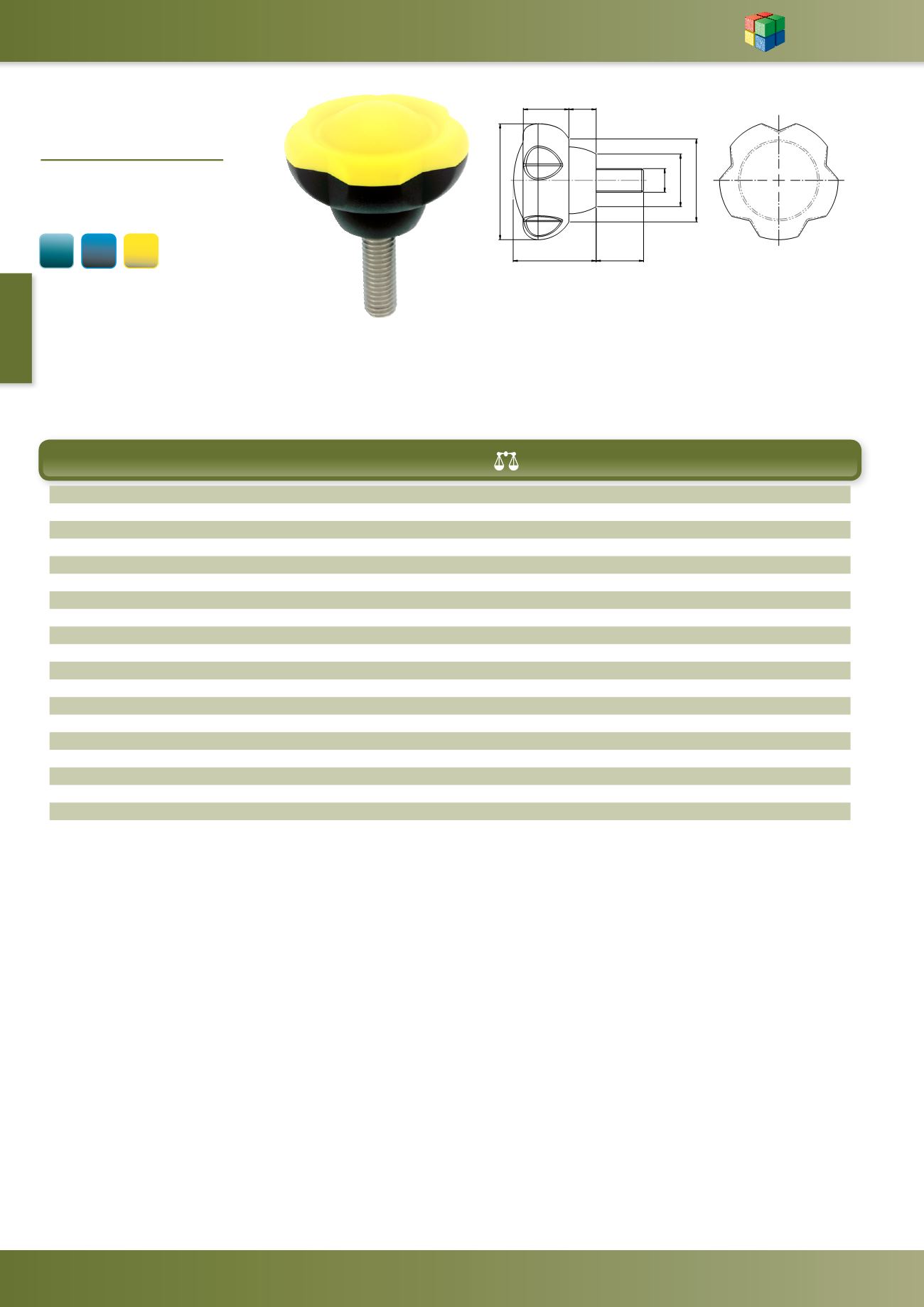

Clamp Grip - Male
WDS 8475
MATERIAL -
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
/
' ' '
'
+ +
+
Cadmium Yellow - RAL 1021
D D1 D2 D3 H H1 H2 L (g)
WDS No.
Steel Insert
WDS No.
Stainless Steel Insert
M10 50 22.2 28.2 34.8 17.8 11.5 20 41 8475-402CY 8475-502CY
M10 50 22.2 28.2 34.8 17.8 11.5 30 47 8475-404CY 8475-504CY
M10 50 22.2 28.2 34.8 17.8 11.5 40 53 8475-406CY 8475-506CY
M10 50 22.2 28.2 34.8 17.8 11.5 50 59 8475-408CY 8475-508CY
M10 50 22.2 28.2 34.8 17.8 11.5 60 66 8475-410CY 8475-510CY
M12 50 22.2 28.2 34.8 17.8 11.5 20 44 8475-412CY -
M12 50 22.2 28.2 34.8 17.8 11.5 30 53 8475-414CY -
M12 50 22.2 28.2 34.8 17.8 11.5 40 61 8475-416CY -
M12 50 22.2 28.2 34.8 17.8 11.5 50 70 8475-418CY -
M12 50 22.2 28.2 34.8 17.8 11.5 60 79 8475-420CY -
M10 63 28 35.5 44 22.5 14.5 20 91 8475-422CY 8475-522CY
M10 63 28 35.5 44 22.5 14.5 30 97 8475-424CY 8475-524CY
M10 63 28 35.5 44 22.5 14.5 40 103 8475-426CY 8475-526CY
M10 63 28 35.5 44 22.5 14.5 50 109 8475-428CY 8475-528CY
M10 63 28 35.5 44 22.5 14.5 60 116 8475-430CY 8475-530CY
M12 63 28 35.5 44 22.5 14.5 20 84 8475-432CY -
M12 63 28 35.5 44 22.5 14.5 30 93 8475-434CY -
M12 63 28 35.5 44 22.5 14.5 40 101 8475-436CY -
M12 63 28 35.5 44 22.5 14.5 50 110 8475-438CY -
M12 63 28 35.5 44 22.5 14.5 60 119 8475-440CY -
ZP 303 RAL
1021
