SECTION 5 - HAND KNOBS WDS
WDS
5-95 & 0845 606 66 77 • : • *

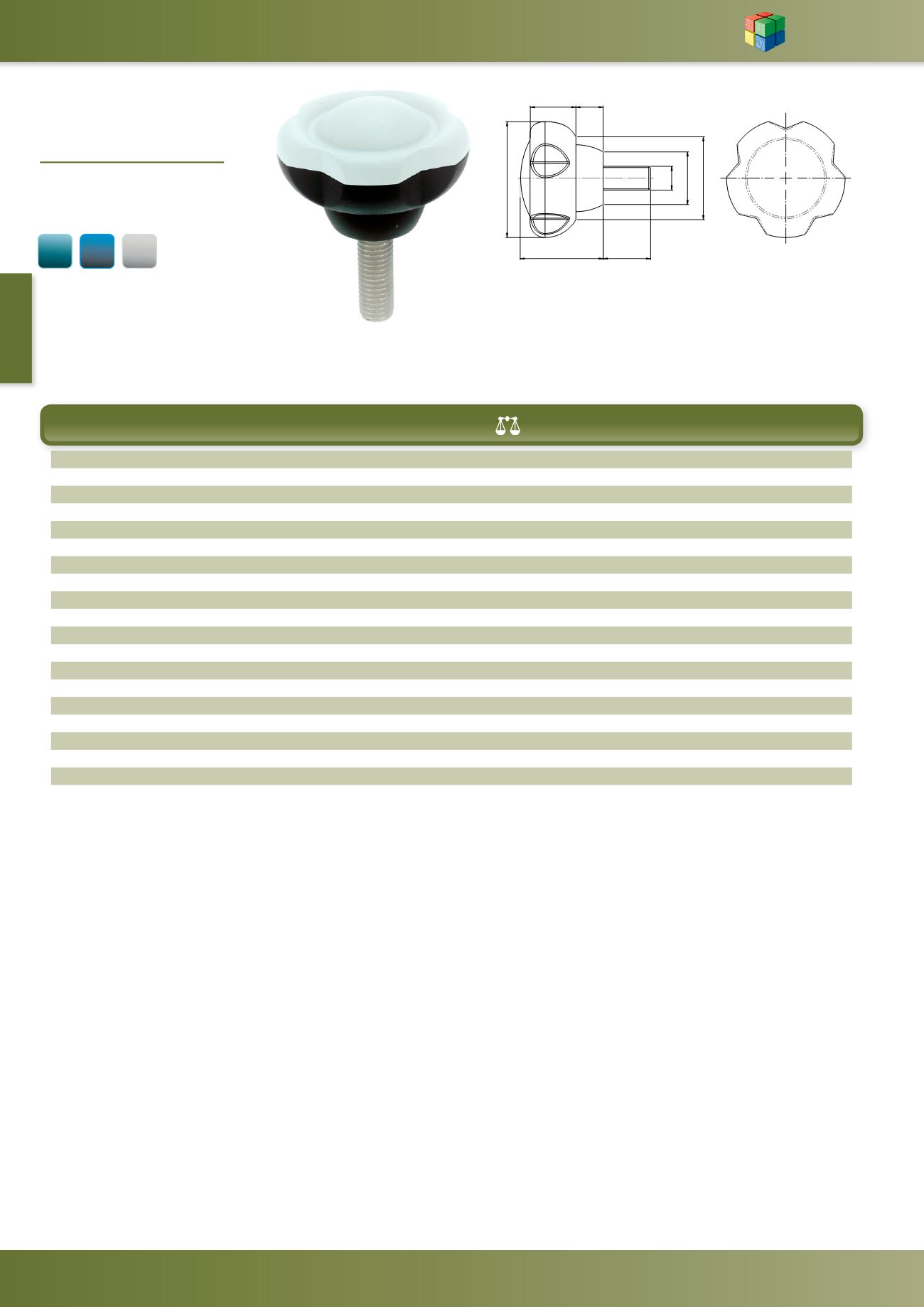

Clamp Grip - Male
WDS 8475
MATERIAL -
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
Pale Grey - RAL 7035
D D1 D2 D3 H H1 H2 L (g)
WDS No.
Steel Insert
WDS No.
Stainless Steel Insert
M10 50 22.2 28.2 34.8 17.8 11.5 20 41 8475-402PG 8475-502PG
M10 50 22.2 28.2 34.8 17.8 11.5 30 47 8475-404PG 8475-504PG
M10 50 22.2 28.2 34.8 17.8 11.5 40 53 8475-406PG 8475-506PG
M10 50 22.2 28.2 34.8 17.8 11.5 50 59 8475-408PG 8475-508PG
M10 50 22.2 28.2 34.8 17.8 11.5 60 66 8475-410PG 8475-510PG
M12 50 22.2 28.2 34.8 17.8 11.5 20 44 8475-412PG -
M12 50 22.2 28.2 34.8 17.8 11.5 30 53 8475-414PG -
M12 50 22.2 28.2 34.8 17.8 11.5 40 61 8475-416PG -
M12 50 22.2 28.2 34.8 17.8 11.5 50 70 8475-418PG -
M12 50 22.2 28.2 34.8 17.8 11.5 60 79 8475-420PG -
M10 63 28 35.5 44 22.5 14.5 20 91 8475-422PG 8475-522PG
M10 63 28 35.5 44 22.5 14.5 30 97 8475-424PG 8475-524PG
M10 63 28 35.5 44 22.5 14.5 40 103 8475-426PG 8475-526PG
M10 63 28 35.5 44 22.5 14.5 50 109 8475-428PG 8475-528PG
M10 63 28 35.5 44 22.5 14.5 60 116 8475-430PG 8475-530PG
M12 63 28 35.5 44 22.5 14.5 20 84 8475-432PG -
M12 63 28 35.5 44 22.5 14.5 30 93 8475-434PG -
M12 63 28 35.5 44 22.5 14.5 40 101 8475-436PG -
M12 63 28 35.5 44 22.5 14.5 50 110 8475-438PG -
M12 63 28 35.5 44 22.5 14.5 60 119 8475-440PG -
/
' ' '
'
+ +
+ ZP 303 RAL
7035
