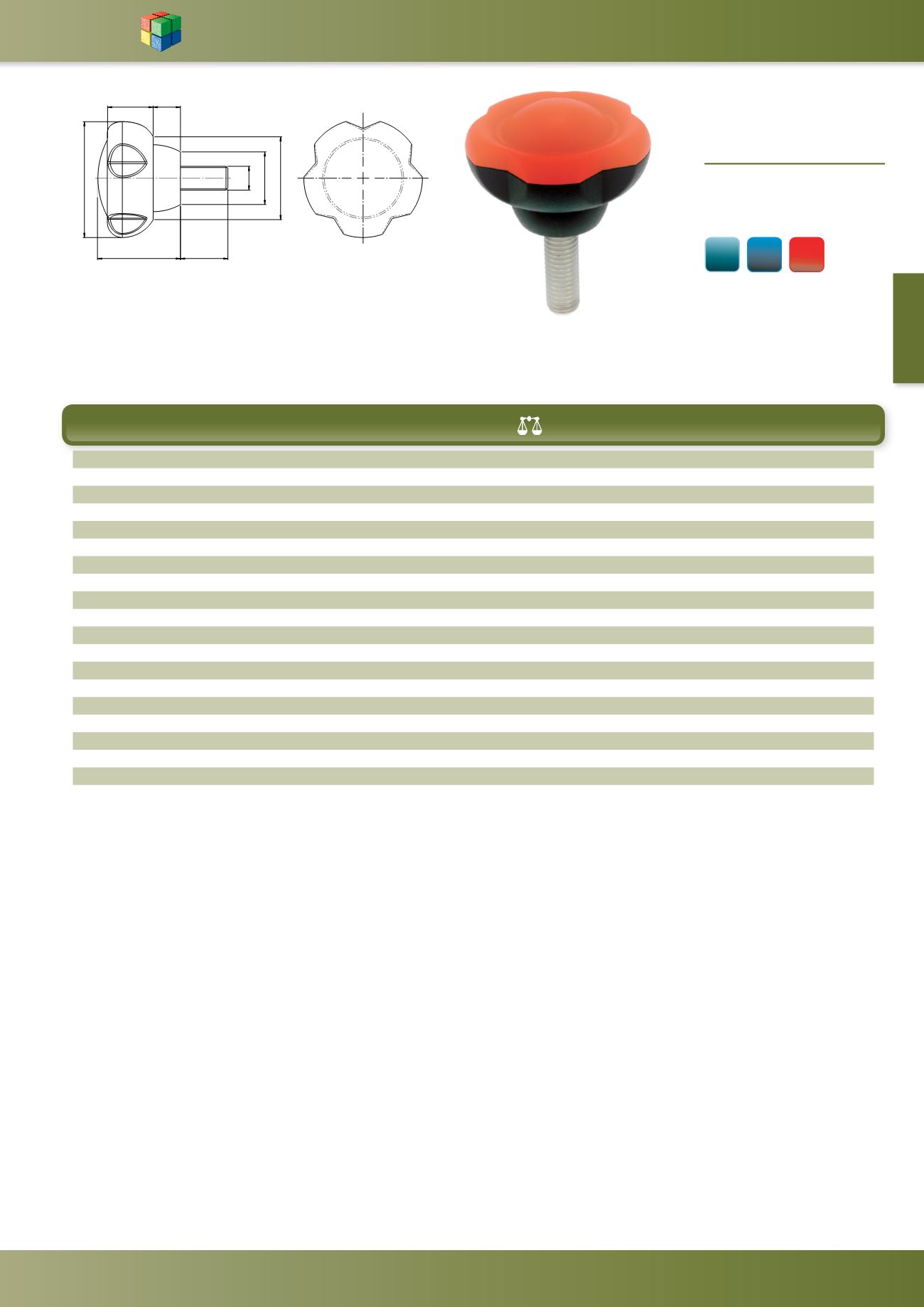

Clamp Grip - Male
WDS 8475
MATERIAL -
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
/
' ' '
'
+ +
+
Traffic Red - RAL 3020
D D1 D2 D3 H H1 H2 L (g)
WDS No.
Steel Insert
WDS No.
Stainless Steel Insert
M10 50 22.2 28.2 34.8 17.8 11.5 20 41 8475-402TR 8475-502TR
M10 50 22.2 28.2 34.8 17.8 11.5 30 47 8475-404TR 8475-504TR
M10 50 22.2 28.2 34.8 17.8 11.5 40 53 8475-406TR 8475-506TR
M10 50 22.2 28.2 34.8 17.8 11.5 50 59 8475-408TR 8475-508TR
M10 50 22.2 28.2 34.8 17.8 11.5 60 66 8475-410TR 8475-510TR
M12 50 22.2 28.2 34.8 17.8 11.5 20 44 8475-412TR -
M12 50 22.2 28.2 34.8 17.8 11.5 30 53 8475-414TR -
M12 50 22.2 28.2 34.8 17.8 11.5 40 61 8475-416TR -
M12 50 22.2 28.2 34.8 17.8 11.5 50 70 8475-418TR -
M12 50 22.2 28.2 34.8 17.8 11.5 60 79 8475-420TR -
M10 63 28 35.5 44 22.5 14.5 20 91 8475-422TR 8475-522TR
M10 63 28 35.5 44 22.5 14.5 30 97 8475-424TR 8475-524TR
M10 63 28 35.5 44 22.5 14.5 40 103 8475-426TR 8475-526TR
M10 63 28 35.5 44 22.5 14.5 50 109 8475-428TR 8475-528TR
M10 63 28 35.5 44 22.5 14.5 60 116 8475-430TR 8475-530TR
M12 63 28 35.5 44 22.5 14.5 20 84 8475-432TR -
M12 63 28 35.5 44 22.5 14.5 30 93 8475-434TR -
M12 63 28 35.5 44 22.5 14.5 40 101 8475-436TR -
M12 63 28 35.5 44 22.5 14.5 50 110 8475-438TR -
M12 63 28 35.5 44 22.5 14.5 60 119 8475-440TR -
RAL
3020 ZP 303
