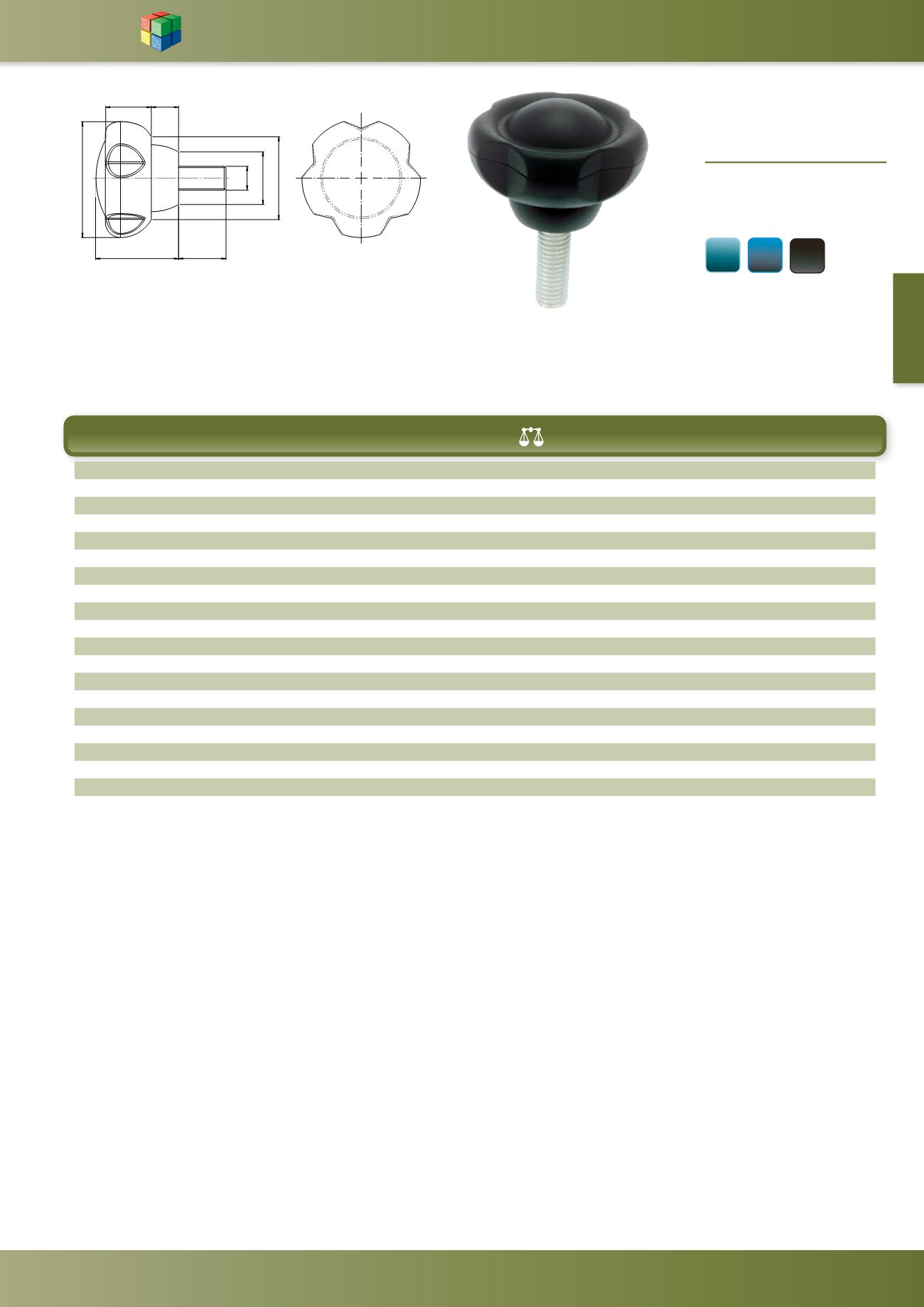

Clamp Grip - Male
WDS 8475
MATERIAL -
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
Black Grey - RAL 7021
D D1 D2 D3 H H1 H2 L (g)
WDS No.
Steel Insert
WDS No.
Stainless Steel Insert
M10 50 22.2 28.2 34.8 17.8 11.5 20 41 8475-402BG 8475-502BG
M10 50 22.2 28.2 34.8 17.8 11.5 30 47 8475-404BG 8475-504BG
M10 50 22.2 28.2 34.8 17.8 11.5 40 53 8475-406BG 8475-506BG
M10 50 22.2 28.2 34.8 17.8 11.5 50 59 8475-408BG 8475-508BG
M10 50 22.2 28.2 34.8 17.8 11.5 60 66 8475-410BG 8475-510BG
M12 50 22.2 28.2 34.8 17.8 11.5 20 44 8475-412BG -
M12 50 22.2 28.2 34.8 17.8 11.5 30 53 8475-414BG -
M12 50 22.2 28.2 34.8 17.8 11.5 40 61 8475-416BG -
M12 50 22.2 28.2 34.8 17.8 11.5 50 70 8475-418BG -
M12 50 22.2 28.2 34.8 17.8 11.5 60 79 8475-420BG -
M10 63 28 35.5 44 22.5 14.5 20 91 8475-422BG 8475-522BG
M10 63 28 35.5 44 22.5 14.5 30 97 8475-424BG 8475-524BG
M10 63 28 35.5 44 22.5 14.5 40 103 8475-426BG 8475-526BG
M10 63 28 35.5 44 22.5 14.5 50 109 8475-428BG 8475-528BG
M10 63 28 35.5 44 22.5 14.5 60 116 8475-430BG 8475-530BG
M12 63 28 35.5 44 22.5 14.5 20 84 8475-432BG -
M12 63 28 35.5 44 22.5 14.5 30 93 8475-434BG -
M12 63 28 35.5 44 22.5 14.5 40 101 8475-436BG -
M12 63 28 35.5 44 22.5 14.5 50 110 8475-438BG -
M12 63 28 35.5 44 22.5 14.5 60 119 8475-440BG -
/
' ' '
'
+ +
+ ZP 303 RAL
7021
