SECTION 7 - LEVELLING FEET
WDS
WDS
www.wdsltd.co.uk7-5
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukD
D1
D2
C
L
L1
L2
L3
S
P
(g)
WDS No.
M16 108
8.5
70
100
45
30
12
24 1600
240
673-651
M16 108
8.5
70
150
45
30
12
24 1600
340
673-653
M16 108
8.5
70
200
45
30
12
24 1600
440
673-655
M20 108
8.5
70
100
45
30
12
30 1600
310
673-657
M20 108
8.5
70
150
45
30
12
30 1600
445
673-659
M20 108
8.5
70
200
45
30
12
30 1600
580
673-661

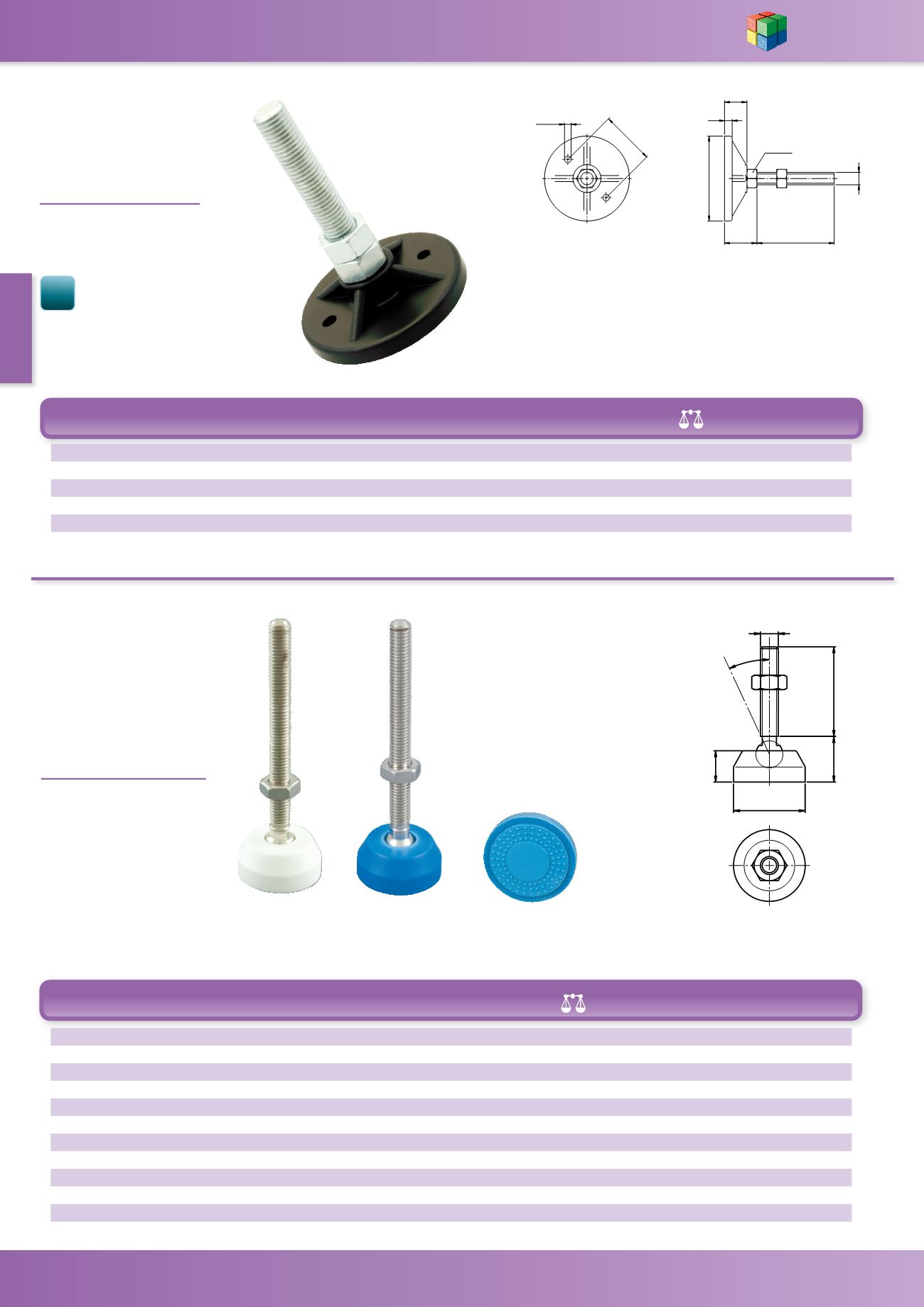

Levelling Foot
(Heavy Duty)
Bolt Down Base
WDS 673
MATERIAL
-
Screw - Steel Zinc plated
Pad - Moulded black
polypropylene
See 818 series for this part in
Stainless Steel
P = Safe working load in kilograms (for static compressive load only)
&
'
'
/
/
'
/
/
6
$ )
3 6DIH ZRUNLQJ ORDG LQ NJ
IRU FRPSUHVVLYH VWDWLF ORDG RQO\
ZP
Steel Nickel
Plated, Plastic
40mm Base
Levelling Foot -
White or Blue
WDS 778
MATERIAL
-
Stem: Steel - Nickel plated
Base: Polypropylene with Rubber
Pad (White Base has Anti-
microbial agent)
Supplied complete with nut
H1
D1
D
L
H
25°
D
L
D1
H
H1
P
(g)
WDS No.
White Base
WDS No.
Blue Base
M8
50
40
25
17.5
150
59
778-20140W 778-20140B
M8
100
40
25
17.5
250
75
778-20240W 778-20240B
M10
50
40
25.5
17.5
300
72
778-20340W 778-20340B
M10
100
40
25.5
17.5
400
97
778-20440W 778-20440B
M10
150
40
25.5
17.5
500
121
778-20540W 778-20540B
M12
100
40
25.5
17.5
600
126
778-20640W 778-20640B
M12
150
40
25.5
17.5
300
162
778-20740W 778-20740B
M12
200
40
25.5
17.5
300
198
778-20840W 778-20840B
M16
100
40
25.5
17.5
400
197
778-20940W 778-20940B
M16
150
40
25.5
17.5
400
262
778-21040W 778-21040B
M16
200
40
25.5
17.5
400
329
778-21140W 778-21140B
Base Pad
P = Safe working load in kilograms (for static compressive load only)
Note: Increasing the angle will decrease the maximum static compressive load. Beware of using at high angles on low friction surfaces.
