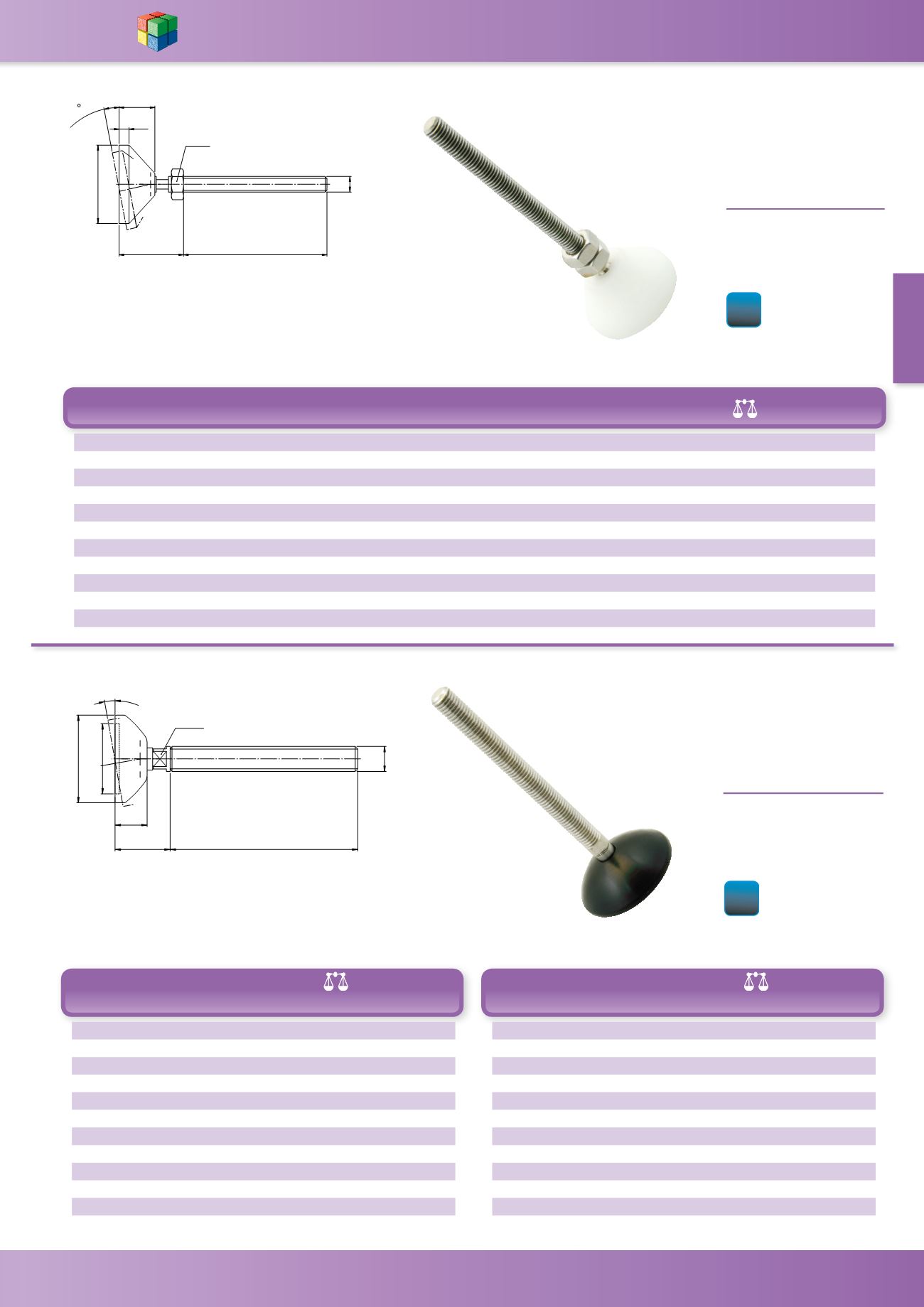

SECTION 7 - LEVELLING FEET WDS
& 0845 606 66 77 • : • * 7-34
WDS
Levelling Foot
(Light Duty)
Conical Base
WDS 818
MATERIAL -
Screw - 304 Stainless Steel
Grade BS 970 Gr 304S11
Pad - Moulded White
Polypropylene
See 673 Series for this part
in Steel
P = Safe working load in kilograms (for static compressive load only)
D L D1 H H1 H2 S P (g) WDS No.
M10 100 50 45 25 7 17 150 100 818-401
M12 100 50 45 25 7 19 200 140 818-407
M12 100 80 45 25 10 19 200 160 818-408
M12 150 50 45 25 7 19 200 180 818-409
M12 150 80 45 25 10 19 200 200 818-410
M16 150 80 50 25 10 24 450 370 818-414
M16 150 105 50 25 10 24 450 390 818-416
M16 200 105 50 25 10 24 450 440 818-418
M20 150 80 50 25 10 30 550 460 818-420
M20 150 105 50 25 10 30 550 470 818-422
M20 200 105 50 25 10 30 550 580 818-423
+
+
+ /
'
'
PD[
6 D I
3 6DIH ZRUNLQJ ORDG LQ NJ
IRU VWDWLF FRPSUHVVLYH ORDG RQO\
304
316 Levelling
Foot with
Plastic Base
WDS 873
MATERIAL -
Stem - 316 Stainless Steel
BS 970 GR 316S11
Base - Black Polypropylene Pad
with Anti-Microbial Agent P = Safe working load in kilograms (for static compressive load only)
D L D1 D2 H H1 S P
(g)
WDS No.
M10 100 35 28 22.5 12 7 150 60 873-410100A
M10 100 50 42 26.5 16 7 250 65 873-410100B
M10 150 35 28 22.5 12 7 150 85 873-410150A
M10 150 50 42 26.5 16 7 250 90 873-410150B
M10 75 35 28 22.5 12 7 150 45 873-41075A
M10 75 50 42 26.5 16 7 250 50 873-41075B
M12 100 35 28 22.5 12 8 150 85 873-412100A
M12 100 50 42 26.5 16 8 250 105 873-412100B
M12 150 35 28 22.5 12 8 150 110 873-412150A
M12 150 50 42 26.5 16 8 250 115 873-412150B
M12 75 35 28 22.5 12 8 150 60 873-41275A
M12 75 50 42 26.5 16 8 250 65 873-41275B
D L D1 D2 H H1 S P
(g)
WDS No.
M16 100 50 42 33.5 18 12 400 165 873-416100C
M16 100 80 68 37.5 22 12 500 185 873-416100D
M16 150 50 42 33.5 18 12 400 240 873-416150C
M16 150 80 68 37.5 22 12 500 260 873-416150D
M16 200 50 42 33.5 18 12 400 305 873-416200C
M16 200 80 68 37.5 22 12 500 325 873-416200D
M20 100 50 42 33.5 18 16 400 245 873-420100C
M20 100 80 68 37.5 22 16 500 265 873-420100D
M20 150 50 42 33.5 18 16 400 365 873-420150C
M20 150 80 68 37.5 22 16 500 385 873-420150D
M20 200 50 42 33.5 18 16 400 455 873-420200C
M20 200 80 68 37.5 22 16 500 475 873-420200D
/ +
+
'
' '
r PD[
3 6DIH ZRUNLQJ ORDG LQ NJ
IRU VWDWLF FRPSUHVVLYH ORDG RQO\
6 D I
316
