SECTION 7 - LEVELLING FEET
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk7-36
WDS
www.wdsltd.co.ukP = Safe working load in kilograms
(for static compressive load only)

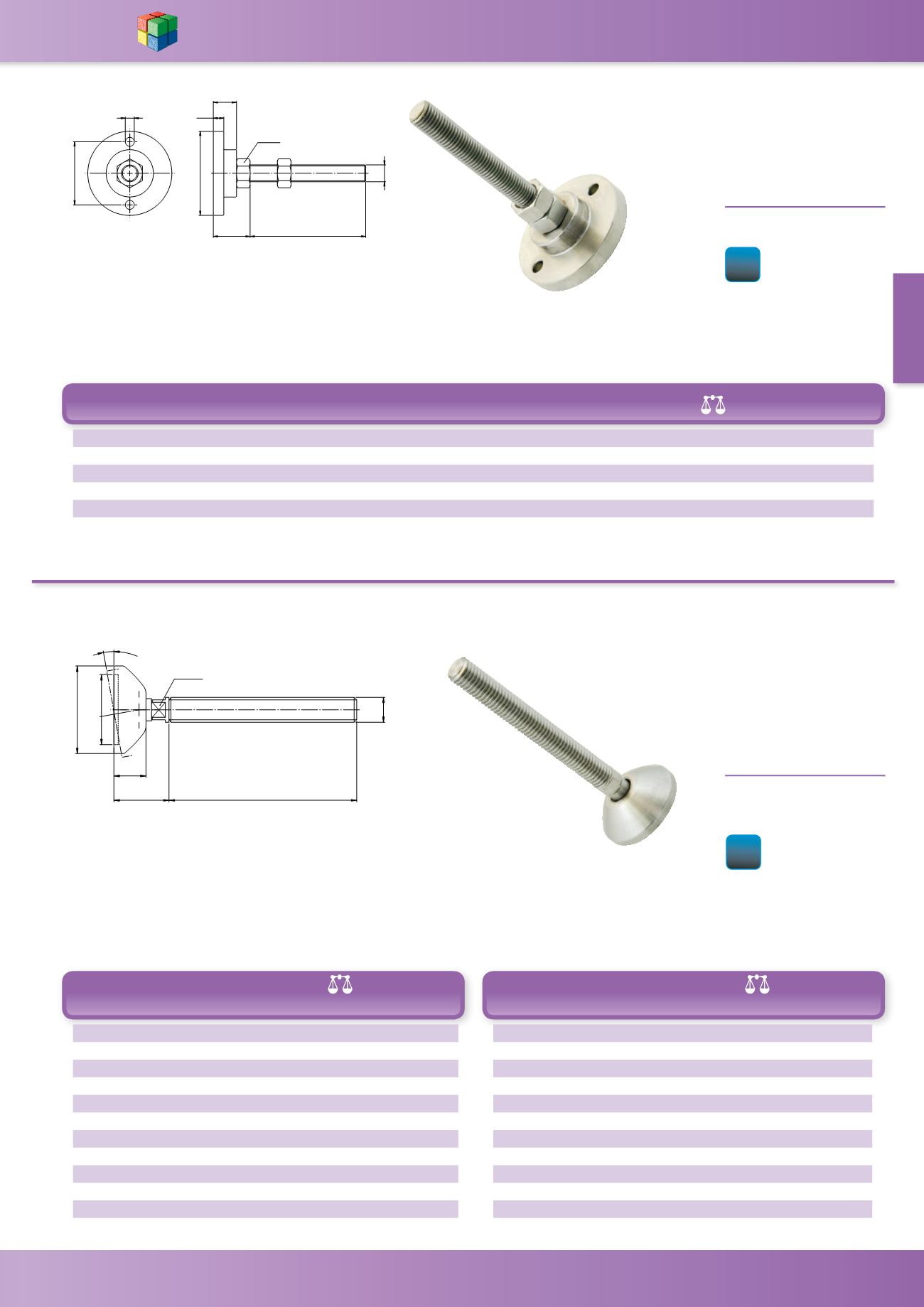

Levelling Foot
(Heavy Duty)
Bolt Down Base
WDS 818
MATERIAL
-
Stainless Steel BS970 Gr 304S11
D
D1
D2
C
L
L1
L2
L3
S
P
(g)
WDS No.
M16
80
8.5
60
100
36
23
10
24 2200
750
818-551
M16
80
8.5
60
150
36
23
10
24 2200
830
818-553
M16
80
8.5
60
200
36
23
10
24 2200
910
818-555
M20
80
8.5
60
100
39
23
10
30 2200
885
818-557
M20
80
8.5
60
150
39
23
10
30 2200 1010
818-559
M20
80
8.5
60
200
39
23
10
30 2200 1135
818-561
&
'
/
/
/
/
'
'
6 D I
3 6DIH ZRUNLQJ ORDG LQ NJ
IRU FRPSUHVVLYH VWDWLF ORDG RQO\
304
Levelling Foot
Stainless
Steel Stem and
Base
WDS 873
MATERIAL
-
316 Stainless Steel BS 970
Gr 316S11
D L D1 D2 H H1 S P
(g)
WDS No.
M10 75 35 28 23.5 12.8 7 300 115 873-41075R
M10 75 50 42 26.4 15.7 7 300 235 873-41075S
M10 100 35 28 23.5 12.8 7 300 140 873-410100R
M10 100 50 42 26.4 15.7 7 300 255 873-410100S
M10 150 35 28 23.5 12.8 7 300 90 873-410150R
M10 150 50 42 26.4 15.7 7 300 100 873-410150S
M12 75 35 28 23.5 12.8 8 500 135 873-41275R
M12 75 50 42 26.4 15.7 8 500 250 873-41275S
M12 100 35 28 23.5 12.8 8 500 165 873-412100R
M12 100 50 42 26.4 15.7 8 500 280 873-412100S
M12 150 35 28 23.5 12.8 8 500 115 873-412150R
M12 150 50 42 26.4 15.7 8 500 230 873-412150S
D L D1 D2 H H1 S P
(g)
WDS No.
M16 100 50 42 33.8 19.0 12 900 335 873-416100T
M16 100 80 68 37.1 22.3 12 900 705 873-416100U
M16 150 50 42 33.8 19.0 12 900 405 873-416150T
M16 150 80 68 37.1 22.3 12 900 775 873-416150U
M16 200 50 42 33.8 19.0 12 900 470 873-416200T
M16 200 80 68 37.1 22.3 12 900 840 873-416200U
M20 100 50 42 33.8 19.0 16 1500 410 873-420100T
M20 100 80 68 37.1 22.3 16 1500 780 873-420100U
M20 150 50 42 33.8 19.0 16 1500 530 873-420150T
M20 150 80 68 37.1 22.3 16 1500 400 873-420150U
M20 200 50 42 33.8 19.0 16 1500 620 873-420200T
M20 200 80 68 37.1 22.3 16 1500 990 873-420200U
P = Safe working load in kilograms
(for static compressive load only)
/
+
+
'
'
'
r PD[
3 6DIH ZRUNLQJ ORDG LQ NJ
IRU VWDWLF FRPSUHVVLYH ORDG RQO\
6 D I
316
