SECTION 12 - ANTI-VIBRATION MOUNTS WDS
& 0845 606 66 77 • : • * 12-6
WDS

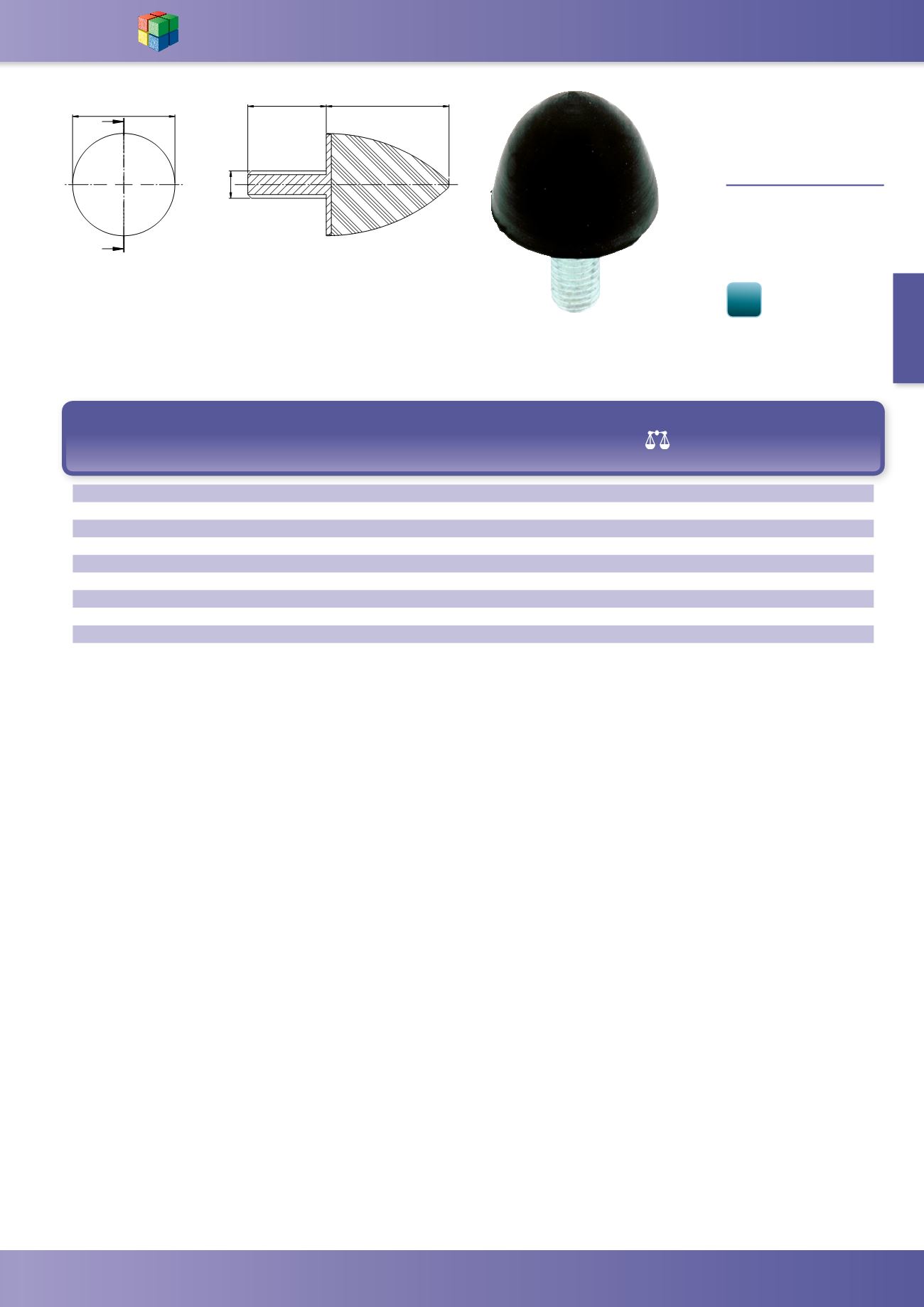

Male Conical
Rubber Stop
WDS 715
MATERIAL -
Thread & Plate Material: BZP
Steel
Shock Absorbing Rubber: Natural
Rubber, Black
Hardness: 55 Shore A
Temperature Range
-30°C to + 80°C
D L D1 L1
Max
Compressive
Load (kg)
Deflection
@ Max
Compressive
Load (mm)
(g) WDS No.
20 24 M6 18 24.2 9.5 15 715-202455
25 30 M6 18 21 8 18 715-253055
30 36 M8 23 57.1 15.4 35 715-303655
40 30 M8 23 45 7.8 50 715-403055
40 60 M8 23 48 10.2 81 715-406055
50 50 M10 28 54 7.2 108 715-505055
50 58 M10 28 178.0 25.0 127 715-505855
50 64 M10 35 80 14.9 140 715-506455
60 60 M12 33 95 17.6 206 715-606055
75 89 M12 37 448.0 37.5 341 715-758955
'
'
/ /
