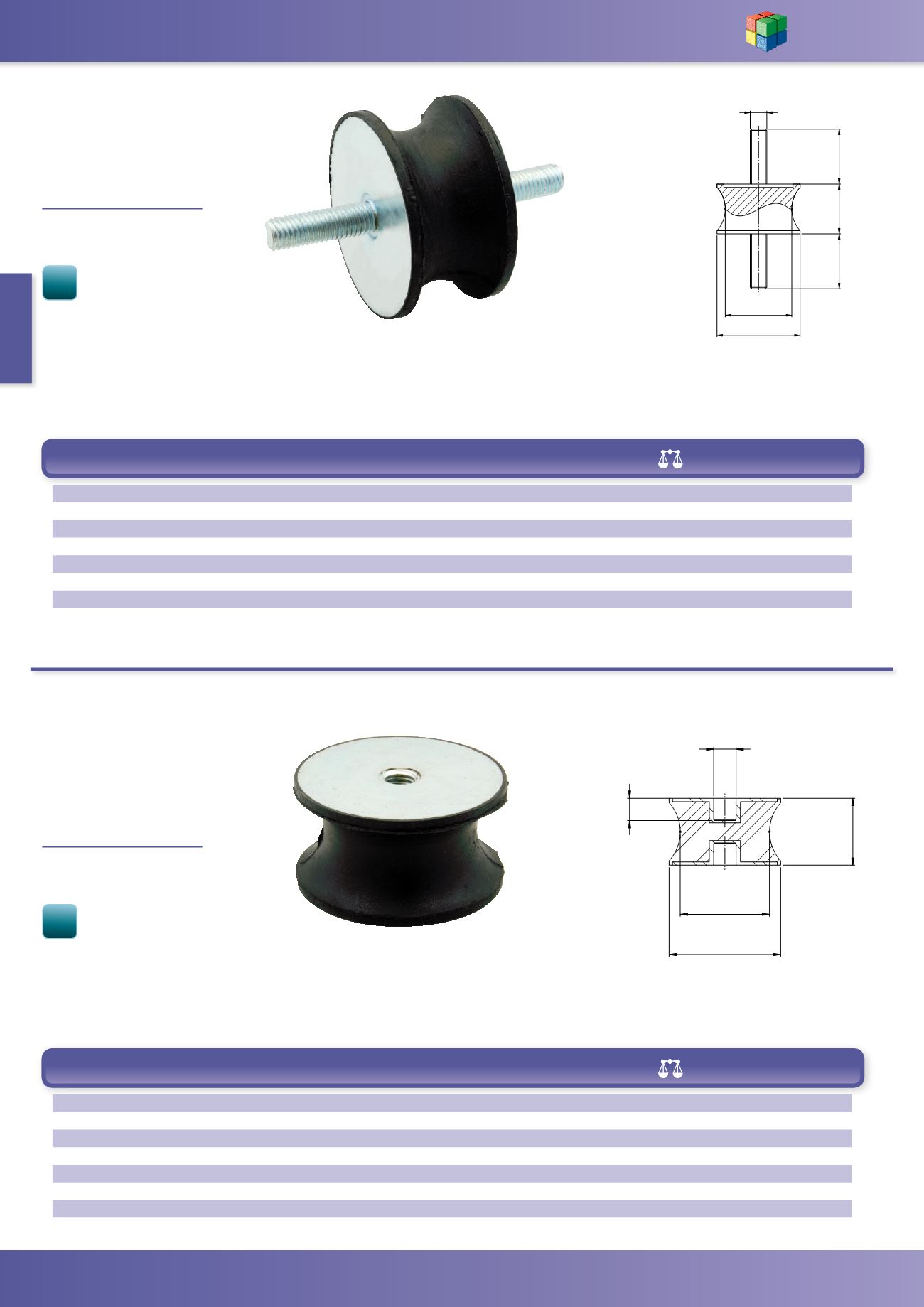

SECTION 12 - ANTI-VIBRATION MOUNTS WDS
WDS
12-7 & 0845 606 66 77 • : • *
Rubber Buffer
Mounts - Male
Threaded
Rubber Buffer
Mounts - Female
Threaded
WDS 716
WDS 717
MATERIAL -
Steel -Zinc plated
Rubber - Shore hardness 57
Temperature Range
-30°C to + 80°C
MATERIAL -
Steel -Zinc plated
Rubber - Shore hardness 57
Temperature Range
-30°C to + 80°C
D D1 G H L (g) WDS No.
10 8 M4 10 13 3 716-101057
15 12 M4 15 13 7 716-151557
20 14 M6 15 18 17 716-201557
30 22 M8 20 23 55 716-302057
40 33 M8 30 23 81 716-403057
40 20 M8 48 23 87 716-404857
50 40 M10 30 33 170 716-503057
75 50 M12 40 37 350 716-754057
D D1 G H T (g) WDS No.
15 12 M4 15 4 6 717-151557
20 14 M6 15 6 13 717-201557
30 22 M8 20 8 35 717-302057
40 33 M8 30 8 74 717-403057
40 20 M8 48 8 73 717-404857
50 40 M10 30 10 117 717-503057
75 50 M12 40 12 298 717-754057
/
+ /
*
'
'
*
